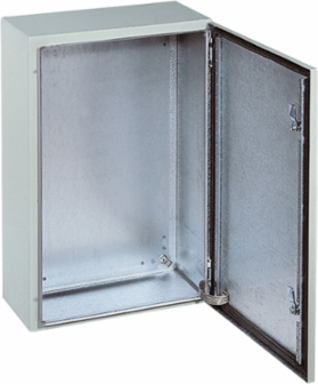

Schneider Electric NSYS3HF6625P Spacial EMC-Enclosure 600mm x 600mm x 250mm IP55 Grey RAL7035
- MPN: NSYS3HF6625P
- PPN: SCH-NSYS3HF6625P
CAD
$1846.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Schneider Electric's NSYS3HF6625P Spacial EMC-Enclosure is designed to provide a robust and secure solution for electronic equipment installations. Measuring 600mm x 600mm x 250mm, this enclosure is engineered with an IP55 rating, ensuring effective protection against dust and water, making it ideal for challenging industrial environments. The sleek grey finish, conforming to RAL7035 standards, not only enhances durability but also offers an aesthetically pleasing look suitable for wall-mounted applications. This enclosure serves as an essential component in safeguarding sensitive electronics from environmental factors, thus ensuring optimal performance and reliability in various operational settings.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Spain
Physical Attributes
- Color
- Gray RAL 7035)
- Enclosure Nominal Width
- 600 mm
Enclosure Nominal Height600 mm
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 1 body, 1 door with lock, 1 mounting plate
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 51 kg CO2 eq., 51.44714296618836
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 107 kg CO2 eq., 106.62615455909699
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Door Type
- Solid
- Energy Efficiency Optimized
- False
- Material
- body aluzinc
- Number Of Doors
- front face 1
- Product Name
- PanelSeT S3HF
- Range
- PanelSeT
- Returnability
- No
- Surface Finish
- epoxy-polyester powder
- Total Lifecycle Carbon Footprint
- 206 kg CO2 eq.
- Pep Code
- ENVPEP1001004EN
- Pep Verification Date
- 2024-10-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Certificate Agency
- IEC 60529
- Package Weight(Lbs)
- 21.838 kg
- Warranty (In Months)
- 18
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]43.35547676474956, 43 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]4.302458225300246, 4 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]kg CO2 eq., 0
Local Publishable Date2026-04-14
Stocking FlagY
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1916
China Rohs In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Device ApplicationIndustrial Application
Electromagnetic CompatibilityEMC immunity
Lock Type3 points lock, 3 mm double-bar
Mounting Plate Descriptionwithout mounting plate
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Or Component Typecompact enclosure
Removable Partsdoor by hinges
Software Versionv6.1
Sustainable PackagingNo
Type Of Gland Platewithout gland plate
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionProtect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]France, FR
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; Europe, EU-27
Recyclability Potential In %98
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code9403200090
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 205.73123251533517
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP1001004EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1001004EN
Ip Degree Of ProtectionIP55
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2024-10-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- compact enclosure
ETIM
- ETIM 8
- EC000261
ETIM 9EC000261
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
