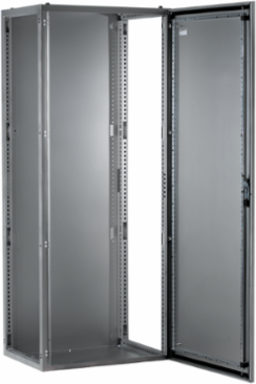

Schneider Electric NSYSFX201060 Spacial SFX 304L Stainless Steel Enclosure 2000x1000x600mm, IK10, IP55

MPN: NSYSFX201060
PPN: SCH-NSYSFX201060

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The Schneider Electric NSYSFX201060 Spacial SFX enclosure is a robust solution designed for harsh environments, constructed from high-quality 304L stainless steel. With a generous size of 2000x1000x600mm, this enclosure provides ample space for housing critical electrical and communication equipment while ensuring maximum security and protection. Rated IK10 for impact resistance and IP55 for water and dust ingress protection, it is well-suited for a variety of applications in automation and control, data and communication, or IT infrastructure. Its durability and reliable performance make it a valuable asset for any operation requiring a secure and sturdy enclosure.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Bulgaria, Brazil, Spain, France, United States

Physical Attributes

Enclosure Nominal Height	2000 mm

Enclosure Nominal Width	1000 mm

Important Information Attributes

Persona Type Ids	LC, OM, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Body Type	single piece structure folded and welded, rear panel integrated
Environmental Characteristic	corrosive, specific hygiene
Carbon Footprint Of The End-of-life Phase [C1 To C4]	234 kg CO2 eq., 233.96956977125518
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	1 509 kg CO2 eq., 1509.2126223226958
Local Data Status	Publishable
Return Indicator	N
Stock Policy	2
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Door Opening Side	reversible 120 °)
Energy Efficiency Optimized	False
Material	structure and door stainless steel 304Lhandle zamakhinge stainless steel
Number Of Doors	front face 2
Product Name	PanelSeT SFX
Range	PanelSeT
Returnability	No
Surface Finish	enclosure Scotch-Brite® brushedhandle painted
Total Lifecycle Carbon Footprint	1 997 kg CO2 eq.
Pep Code	ENVPEP2107011EN
Pep Verification Date	2024-07-01
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	20
Energy Model - Installation [A5]	Electricity Mix; Low voltage; 2018; Europe, EU-27
Energy Model - End Of Life [C1-c4]	Electricity Mix; Low voltage; 2018; Europe, EU-27
Certificate Agency	IEC 62208
Package Weight(Lbs)	112.000 kg
Warranty (In Months)	18

Persona Type Names	Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Device Composition	1 structure2 door with reinforcement frame1 locking system with handle door4 mounting plate bracket, 1 cable gland plate
Carbon Footprint Of The Distribution Phase [A4]	222.3561405647015, 222 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	31.476227064650054, 31 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	kg CO2 eq., 0
Local Publishable Date	2025-07-10
Stocking Flag	Y
Weee Scope	Out
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1912
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Device Application	multi-purpose
Door Type	Solid
Lock Type	3 points lock, handle with 5 mm double-bar insert
Mounting Plate Description	without mounting plate
Product Availability	Non-Stock - Not normally stocked in distribution facility
Product Or Component Type	suitable enclosure
Removable Parts	door by hingesmounting plate bracket by screwscable gland plate by clips
Software Version	v6.1
Sustainable Packaging	No
Type Of Gland Plate	plain
Database Version	2023-02
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Functional-unit Unit	Unit
Energy Model - Manufacturing [A1-a3]	Spain, ES
Energy Model - Use [B6]	Electricity Mix; Low voltage; 2018; Europe, EU-27
Recyclability Potential In %	97
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	9403200090

Environment Attributes Main

Take Back	No
China Rohs Regulation	X
Carbon Footprint	1997.0145597233025
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2024-07-01
Psr Version	PSR-0005-ed3.1-EN-2023 12 08

Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP2107011EN
Ip Degree Of Protection	IP55 IEC 60529
Packaging Without Single Use Plastic	No
Pep Code	ENVPEP2107011EN
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent internal review
