Schneider Electric NSYSMX181640 Spacial SMX 304L Stainless Steel Enclosure 1800x1600x400mm IP55 IK10
- MPN: NSYSMX181640
- PPN: SCH-NSYSMX181640
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

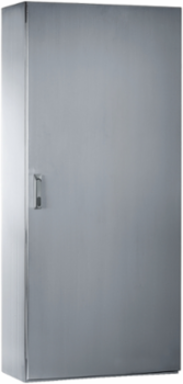

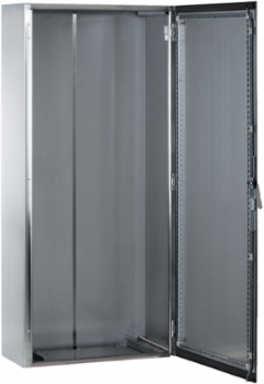

Spacial SMX stainless steel monobloc enclosure. 1799 x 1600 x 400 mm. Compact floor standing enclosure. No mounting plate included. 2 door(s). Single piece body folded and welded. 3 points lock, handle with 5 mm double-bar insert. Stainless steel 304L, Scotch-Brite brushed finish. Certifications is UL 508, CAN/CSA 22. IP54, IK10. Corrosive, Specific hygiene characteristic.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Bulgaria, Brazil, Spain
Physical Attributes
- Enclosure Nominal Height
- 1800 mm
Enclosure Nominal Width1600 mm
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 1 body, 2 door, 1 cable gland plate, 1 locking system with handle door, 4 mounting plate bracket
- Material
- body and door stainless steel 304L, handle zamak, hinge stainless steel
- Surface Finish
- enclosure Scotch-Brite® brushed, handle painted
- Carbon Footprint Of The Distribution Phase [A4]
- 337.504856214279, 338 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 47.776416080272405, 48 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 0 kg CO2 eq., 0
- Local Publishable Date
- 2025-12-11
- Stocking Flag
- Y
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1912
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Body Type
- single piece body folded and welded
- Door Opening Side
- reversible 120 °)
- Energy Efficiency Optimized
- False
- Mounting Plate Description
- without mounting plate
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Or Component Type
- compact enclosure
- Returnability
- No
- Sustainable Packaging
- No
- Type Of Gland Plate
- plain
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Spain, ES
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Recyclability Potential, In %
- 97
- Package Weight(Lbs)
- 170.000 kg
- Warranty (In Months)
- 18
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Environmental Characteristiccorrosive, specific hygiene
Removable Partsdoor by hinges, mounting plate bracket by screws, cable gland plate by clips
Certificate AgencyUL 508, CAN/CSA 22
Carbon Footprint Of The End-of-life Phase [C1 To C4]355 kg CO2 eq., 355.13238268851234
Carbon Footprint Of The Manufacturing Phase [A1 To A3]2 291 kg CO2 eq., 2290.7691588826633
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Device Applicationmulti-purpose
Door TypeSolid
Lock Type3 points lock, handle with 5 mm double-bar insert
Number Of Doorsfront face 2
Product NamePanelSeT SMX
RangePanelSeT
Software Versionv6.1
Total Lifecycle Carbon Footprint3 031 kg CO2 eq.
Pep CodeENVPEP2107011EN
Pep Verification Date2024-07-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y20
Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; Europe, EU-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; Europe, EU-27
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 3031.182813865727
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2024-07-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2107011EN
Ip Degree Of ProtectionIP55 IEC 60529
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2107011EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- compact enclosure
ETIM
- ETIM 8
- EC000261
ETIM 9EC000261
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
