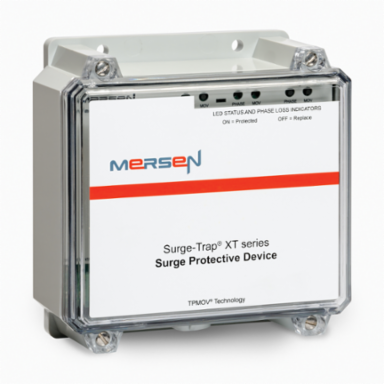

Mersen STXT240D20A SPD - Type 1 ST-XT Series 240V L-L VPR 2000V L-L MCOV 640V 200 kA LED + Audible
Mersen STXT240D20A SPD - Type 1 ST-XT Series 240V L-L VPR 2000V L-L MCOV 640V 200 kA LED + Audible
- MPN: STXT240D20A
- UPC: 782001470982
- PPN: FER-STXT240D20A
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$3248.72/ EA
Description
The Surge-Trap Type 1 STXT Series has standard EMI/RFI Filtering, LED indication on each phase, optional remote indication, and surge capacities up to 200kA. The STXT features TPMOV® technology inside, making it the safest product available, and does not require additional overcurrent protection. With line or load side installation flexibility, this unit is a great fit from the service entrance all the way down to each distribution and/or branch panel.
Specifications
Specifications
- Frequency (Hz)
- 50/60 Hz
- UL SPD Type
- Type 1
- AC or DC
- AC
- System Configuration
- 3-Phase Delta
- Indication System Type
- LED and Remote Audible Alarm
- Enclosure NEMA Type
- 4X Non-Metallic
- Installation Mounting
- Panel or Wall Mount
- MCOV L-L
- 640 V
- VPR L-L
- 2000 V
- Length
- 7.4 in
- Weight
- 4.2 lb
ROHS CompliantYes
FormatSTXT
Nominal Discharge Current (In) (8/20)20 kA
Indication SystemYes
Connection/Terminal TypeBox
Housing MaterialPolycarbonate
MCOV L-G320 V
VPR L-G1200 V
Width7.08 in
Height3.68 in
