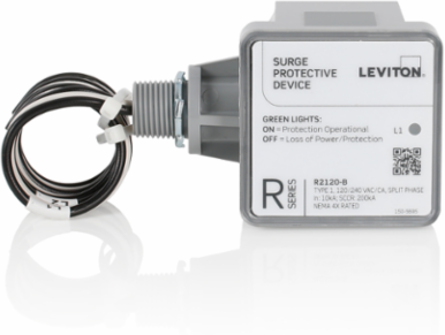

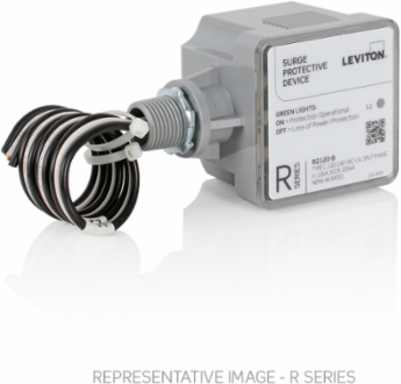

Leviton R2120-B Type 1 Surge Protective Device 120/240 VAC Split Phase, NEMA 4X, 36kA, 10kA I-nominal
- MPN: R2120-B
- UPC: 078477583012
- PPN: LEV-R2120-B
CAD
$121.50
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
R Series Type 1 Surge Panel, 120/240 VAC, Split Phase, Max Surge Current Rating of 36kA per Mode/36kA per Phase, 200kA Short Circuit Current Rating (SCCR), 10kA I-nominal (l n ) Rating, NEMA 4X Rated Enclosure, Thermally Protected MOVs, VPR Performance Data = L-N: 700, L-L: 1200, Maximum Continuous Operating Voltage (MCOV): 180/360V, Plastic Enclosure, LED Status Monitoring, UL 1449 Listed, Approximate Lead Length = 18", White
Features
- Max Surge Current Rating (Surge Capacity)
- The maximum amount of current the device is capable of diverting to ground during a single surge event without performance degradation of more than 10%
- Higher values are better Nominal Discharge Current Rating (I n )
- Leviton surge protective devices (SPDs) divert damaging voltage transients, or surges, away from electronic equipment
- Designed for RESIDENTIAL APPLICATIONS, the R Series is compact in size and easy to install
- Code Compliant – in 2020, Article 230.67 of the National Electrical Code® (NEC) updates required all services supplying dwelling units to be provided with a surge protective device (SPD), as an integral part of equipment or located immediately adjacent. The SPD must be a Type 1 or Type 2 SPD . The 2023 code expanded the requirements to dormitory units, guest rooms and guest suites of hotels and motels, and areas of nursing homes and limited-care facilities used exclusively as patient sleeping rooms Leviton’s R Series features a $25K Connected Equipment Warranty – click here for more information
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Please Contact Customer Service |
|---|
| RoHS Compliant | False |
|---|
Performance Data
| Nominal Discharge Current Rating | 10kA |
|---|---|
| Remote Monitoring | No |
| VPR L-N | 700V |
| Protection Modes | Reduced Mode of Protection (L1-N, L2-N) |
|---|---|
| VPR L-L | 1200V |

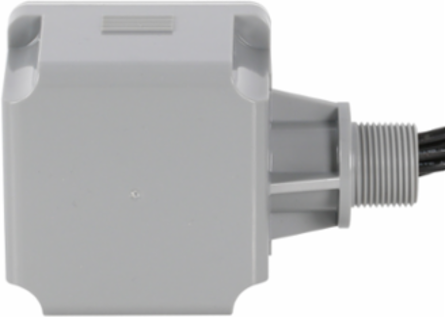

Enclosure
| Color | Gray |
|---|---|

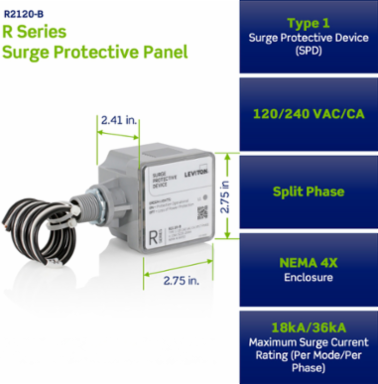

| Dimensions | 4.25" x 2.41" x 2.75" |
| Mount | Surface |
| Connector | 1/2" NPT Side Mount Nipple |
|---|---|
| Enclosure Material | Polycarbonate |
| NEMA Rating | NEMA 4X |
Electrical Specification
| Connection Type | #14 AWG |
|---|---|
| MCOV | 180V |
| Recommended Circuit Breaker Rating | 20A |
| Surge Technology | Thermally Protected MOVs |
| Voltage Configuration | 120/240V AC/CA Split Phase |
| Frequency | 50/60Hz |
|---|---|
| Maximum Surge Current, Per Mode (Per Phase) | 36kA, (36kA) |
| Short Circuit Current Rating | 200kA |
| Type | 1 |
Standards, Certifications & Compliance
| ANSI/IEEE | C-62.41.1-2002, C-62.41.2-2002 C-62.45-2002 |
|---|---|
| California Prop 65 | Compliant |
| Reach | Compliant |
| UL | 1449 5th Edition: 2021, cULus |
| CSA | CSA C22.2 No. 269.1-17, 2017-02 |
|---|---|
| National Electric Code (NEC) | 285 |
| RoHS | Compliant |
Product Features
| Disconnect Switch | No |
|---|---|
| Replaceable Modules | No |
| Surge Counter | No |
| Filtering | No |
|---|---|
| Series | R Series |
Warranty
| Warranty | 5-Year Limited |
|---|
Environmental Specifications
| Humidity Range | 0 to 95% Non-Condensing |
|---|
| Storage Temperature | -49°F to 140°F (-45°C to 60°C) |
|---|
