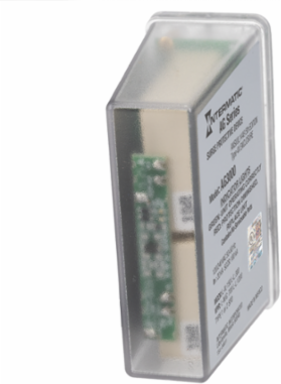

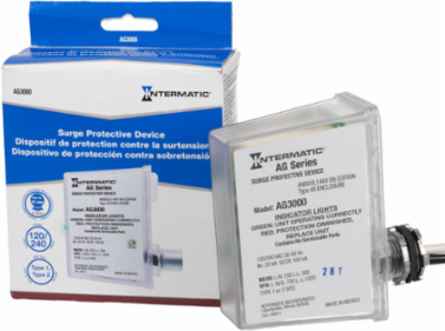

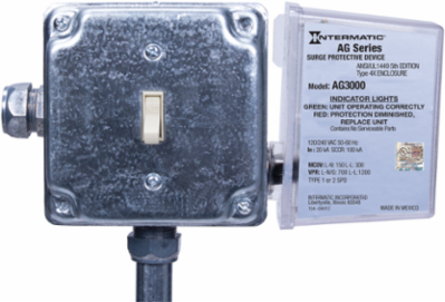

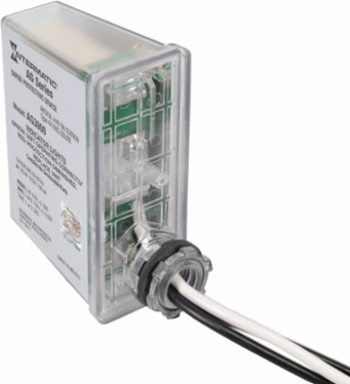

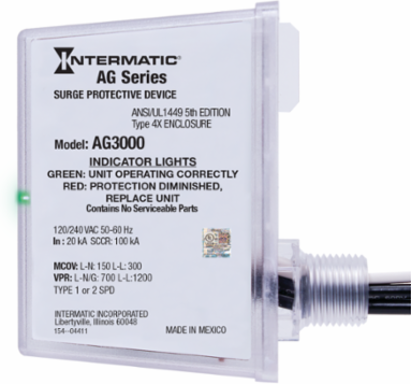

Intermatic AG3000 Surge Protective Device, 120/240 VAC, 3-Mode, Type 1/2, Outdoor
- MPN: AG3000
- UPC: 078275130678
- PPN: INT-AG3000
- UNSPSC: 39121634
CAD
$113.03
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Power surges are the silent killer for home appliances and HVAC equipment. Most homeowners protect their electronics, but leave more valued equipment unprotected. Surges can wipe out equipment and leave you searching for answers. Search no more. The easy-to-install AG3000 Surge Protective Device (SPD) is the perfect add-on for HVAC equipment. A green LED indicator will be on when the SPD is operating correctly. A red LED indicator will be on when protection is diminished and the SPD needs to be replaced. Trusted, state-of-the-art TPMOV® (Thermally Protected Metal Oxide Varistor) technology eliminates the potentially hazardous failure modes that are commonly associated with standard MOV technology. UL Listed to ANSI/UL 1449, 5th Edition.
Features
- Three modes of protection: L-G, L-L, L-N
- TPMOV® surge protection technology
- LED Indicators. Green: unit operating correctly Red: protection diminished, replace unit.
- Type 4X watertight and UV resistant plastic enclosure
- 3-year product warranty
- $7,500 connected equipment warranty for 3 years
- UL certified to ANSI/UL 1449 5th edition
Documentation & Downloads
Specifications
Key Specifications
- Warranty Period
- 3-Year limited
- Applications
- Distribution Panel;HVAC Equipment Protection;Service Entrance
- Height
- 3.875 in
- Depth
- 4.188 in
ColorClear
Marketing DescriptionPower surges are the silent killer for home appliances and HVAC equipment. Most homeowners protect their electronics, but leave more valued equipment unprotected. Surges can wipe out equipment and leave you searching for answers. Search no more. The easy-to-install AG3000 Surge Protective Device (SPD) is the perfect add-on for HVAC equipment. A green LED indicator will be on when the SPD is operating correctly. A red LED indicator will be on when protection is diminished and the SPD needs to be replaced. Trusted, state-of-the-art TPMOV® (Thermally Protected Metal Oxide Varistor) technology eliminates the potentially hazardous failure modes that are commonly associated with standard MOV technology. UL Listed to ANSI/UL 1449, 5th Edition.
Width1.625 in
Country of OriginMexico
