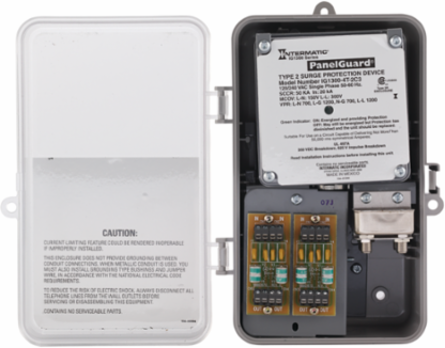

Intermatic IG1300-4T-2C3 Surge Protective Device, 120/240 VAC, 4 Tel, 2 Coax, 6-Mode
- MPN: IG1300-4T-2C3
- UPC: 078275124370
- PPN: INT-IG1300-4T-2C3
- UNSPSC: 39121634
CAD
$597.26
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The IG1300 Series provides protection for telephone and coax lines in addition to AC Power. Trusted, state-of-the-art TPMOV® (Thermally Protected Metal Oxide Varistor) surge protection technology eliminates the potentially hazardous failure modes that are commonly associated with standard MOV technology. A green LED indicator provides status of protection. The IG1300 Series Surge Protective Devices are designed for Type 2 applications for installations after service entrances. CSA certified to ANSI/UL 1449, 5th Edition, UL 497A for phone line and UL 497B for coax cable.
Features
- Six modes of protection for AC SPD
- TPMOV® surge protection technology for AC SPD
- Green LED indicator provides status of protection
- Provides protection for two telephone lines (analog phone line, modem, or DSL) and one coax line (cable TV, cable Internet, or Satellite TV)
- Type 3R plastic rainproof enclosure for indoor/outdoor installations
- 5-year product warranty
- $10,000 connected equipment warranty on appliances and electronics
- UL certified to ANSI/UL 1449 5th edition
- UL 497A is for telephone protection
- UL 497B is for coax protection
Documentation & Downloads
Specifications
Key Specifications
- Warranty Period
- 5-Year limited
- Applications
- Distribution Panel;Service Entrance
- Height
- 10 in
- Depth
- 4 in
ColorGray
Marketing DescriptionThe IG1300 Series provides protection for telephone and coax lines in addition to AC Power. Trusted, state-of-the-art TPMOV® (Thermally Protected Metal Oxide Varistor) surge protection technology eliminates the potentially hazardous failure modes that are commonly associated with standard MOV technology. A green LED indicator provides status of protection. The IG1300 Series Surge Protective Devices are designed for Type 2 applications for installations after service entrances. CSA certified to ANSI/UL 1449, 5th Edition, UL 497A for phone line and UL 497B for coax cable.
Width6.5 in
Country of OriginMexico
