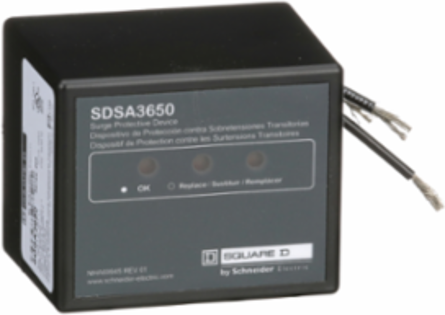

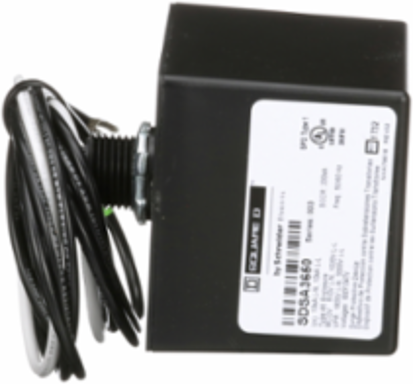

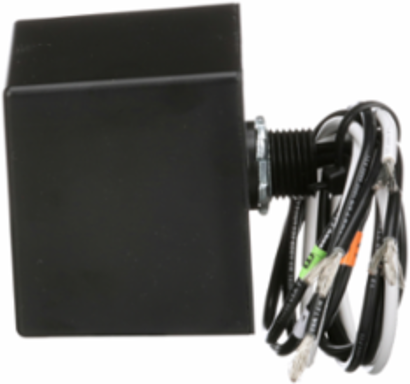

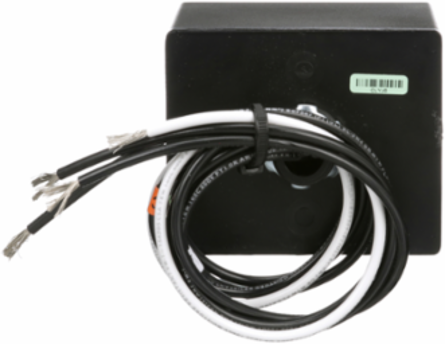

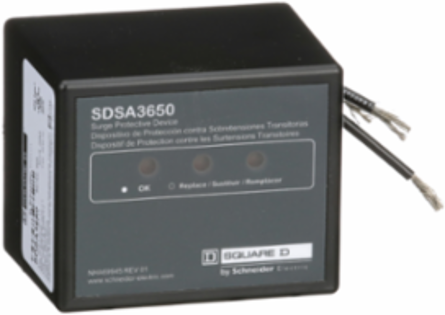

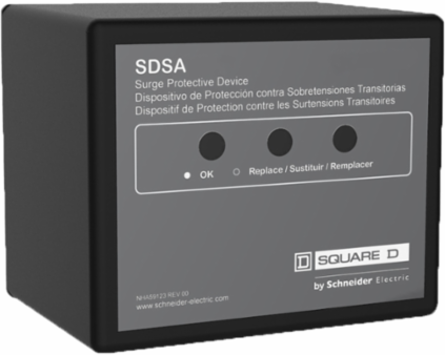

Square D SDSA3650 Surge protection device, Surgelogic, 50kA, 600Y/347VAC, 3 phase, 4 wire, NEMA 4X

MPN: SDSA3650
UPC: 785901210887
PPN: SCH-SDSA3650
UNSPSC: 39121634

$320.11

Available to Order from Manufacturer

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Surgelogic™ Type SDSA is used mostly in service entrance panels to provide an efficient and economical means of surge suppression. Equipped with LED status signal light for convenient use. SPD are three phase and are rated for use in an indoor or outdoor enclosure. Ideal for residential and light commercial use, these SPDs provide a dependable first layer of surge protection. It is designed to protect electrical service and major household appliances, excluding electronic devices. Designed for 4 wire 600Y/377VAC three phase systems. Securing up to 50kA surge current per phase. This surge protection device is UL Listed.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico

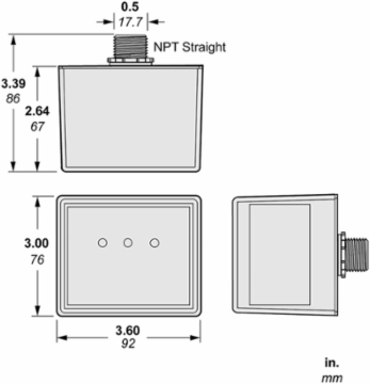

Depth	3.4 in

Weight	464.93 g

Physical Attributes

Cable Length	24 in

Complementary Attributes

Uc Maximum Continuous Operating Voltage	510 V

Ue Rated Operational Voltage	600Y/347 V AC

Important Information Attributes

Persona Type Ids	EU, EUA, LC, OM, SC
Certificate Agency	UL 1449:ed. 4: type I, NEC 285: type I, CSA C22.2 No 8
Carbon Footprint Of The End Of Life Phase C1 To C4	0.8 kg CO2 eq., 0.752970184546672
Carbon Footprint Of The Manufacturing Phase A1 To A3	4 kg CO2 eq., 3.9007625450706
Local Data Status	Publishable
Return Indicator	Y
Serviceability	No
Field Service Division	PPIBS
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2607151EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2534
China Rohs In Scope	No
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Market Segmentation Id	COMMERCIAL
Product Kit Identifier	N
Energy Efficiency Optimized	False
Nominal Discharge Current	10 kA
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	Surgelogic
Software Version	v6.3.2
Total Lifecycle Carbon Footprint	164 kg CO2 eq.

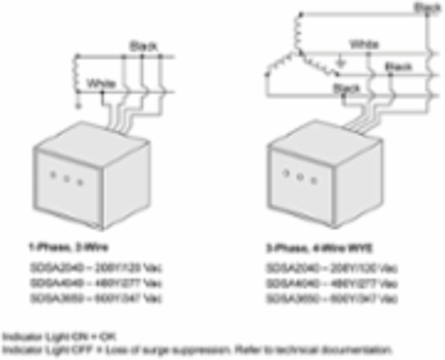

Wiring Configuration	4-wire
Data Source	referent product
Width Nominal	3.6 in
Customs Code	8536308000
Warranty In Months	18
Functional Unit Description	Protect, against direct and indirect effects of lightning or against transient overvoltages, electronic equipment connected to networks with a rated operational voltage of up to 1000 V AC or 1500 V DC, via a surge arrester of type T, with Np poles, according to the appropriate use scenario, and for the reference service life of the product of 20 years.Protect, against direct and indirect effects of lightning or against transient overvoltages, electronic equipment connected to networks with a rated operational voltage of up to 510 V via a surge arrester of type T, with Np poles, according to the appropriate use scenario, and for the reference service life of the product of 10 years.
Functional Unit Unit	unit
Recyclability Potential In %	4

Persona Type Names	End User, Consumer, Contractor, Original Equipment Manufacturer, Electrician
Carbon Footprint Of The Distribution Phase A4	0.3125184854568577, 0.3 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.212026638609982, 0.2 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	159 kg CO2 eq., 159.2493811866855
Local Publishable Date	2026-09-05
Device Type	Surge Protection and Power Conditioning - Surge Protection Devices
Traceability	Yes
Average Life Duration	10 year(s)
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Market Segmentation	Commercial
Enclosure Material	Black Plastic
Local Signalling	status LED green normal operation
Phase	3 phase
Product Or Component Type	surge protection device
Returnability	Yes
Sustainable Packaging	Yes
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version	2026-04
Height Nominal	3 in
Nbr. Of Units In Pkg.	1
Short Circuit Protection	200 kA
Packaging Weight In G	114.1
Functional Unit Quantity	1
Reference Lifetime In Y	2010
Pep End Of Validity Date Calculated	2031-10-01

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Recycled Metal Content At Cr Level	0 %
Carbon Footprint	164.42765904036963
Circularity Profile	ENVEOLI2607151EN
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2026-10-01
Psr Version	PSR-0005-ed3.1-EN-2023 12 08

Take Back	No
Mercury Free	Yes
Ambient Air Temperature For Operation	65-65 °C
Environmental Disclosure	ENVPEP2607151EN
Nema Degree Of Protection	NEMA 4X
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP2607151EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
