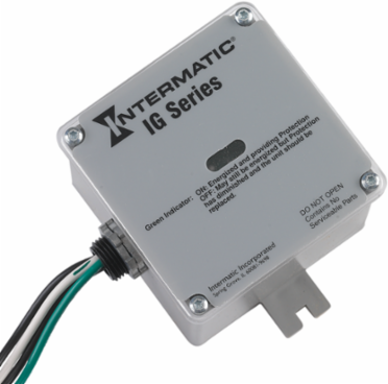

Intermatic IG1240RC3 Surge Protective Device 6-Mode 120/240 VAC 1Ph
- MPN: IG1240RC3
- UPC: 078275124394
- PPN: INT-IG1240RC3
- UNSPSC: 39121634
CAD
$271.52
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The IG Series Surge Protective Devices (SPD) are designed for a variety of applications. A green LED indicator provides status of protection. Trusted, state-of-the-art TPMOV® (Thermally Protected Metal Oxide Varistor) surge protection technology eliminates the potentially hazardous failure modes that are commonly associated with standard MOV technology. Type 1 applications include outdoor installations before service entrances and utility meter cabinets. Type 2 applications include installations after service entrances. CSA certified to ANSI/UL 1449, 5th Edition.
Features
- Six modes of surge protection.
- TPMOV® surge protection technology.
- Green LED indicator provides status of protection.
- Type 3R rainproof enclosure for indoor/outdoor applications in plastic.
- 5-year product warranty.
- $10,000 connected equipment warranty on appliances and electronics.
- UL certified to ANSI/UL 1449 5th edition.
Documentation & Downloads
Specifications
Additional
| Voltage | 120/240 VAC |
|---|---|
| Surge Protection Type | Type 1, Type 2 |
| Nominal Discharge Current | 20 kA |
| Maximum Continuous Operating Voltage (L-G) | 300 V |
| Maximum Continuous Operating Voltage (L-N) | 150 V |
| Voltage Protection Rating (L-G) | 1200 V |
| Voltage Protection Rating (L-N) | 700 V |
| Phase | Single |
| Height | 4.188 in |
| Depth | 3.438 in |
| Wire Size Max | #12 AWG Tinned Copper |
| Color | Gray |
| Warranty Period | 5-Year limited |
| Surge Protection Technology | TPMOV4 |
|---|---|
| Short Circuit Current Rating | 100 kA |
| Maximum Surge Current Rating Per Phase | 50 kA |
| Maximum Continuous Operating Voltage (L-L) | 300 V |
| Maximum Continuous Operating Voltage (N-G) | 150 V |
| Voltage Protection Rating (L-L) | 1200 V |
| Voltage Protection Rating (N-G) | 700 V |
| Operating Temperature Range | -31 6F to 185 6F |
| Width | 4.188 in |
| Wire Lead Length | 30 in |
| Enclosure Type | Type 3R rainproof plastic |
| Country of Origin | Mexico |
