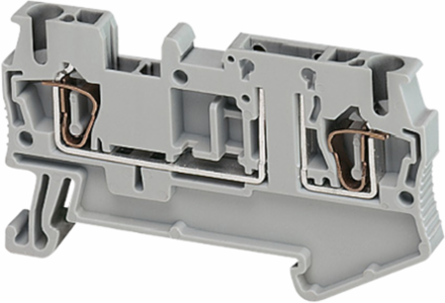

Schneider Electric NSYTRR22TB Linergy TR Terminal Block, 2 Points, 4mm², Removable Carrier, Grey
- MPN: NSYTRR22TB
- PPN: SCH-NSYTRR22TB
CAD
$9.14
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Linergy TR Terminal Block from Schneider Electric is engineered for versatility in automation and control applications. With a two-point configuration and a 4mm² capacity, it effectively supports efficient wiring connections while ensuring reliable performance. The removable carrier feature simplifies installation and maintenance, making it a practical choice for panel builders and electricians alike. Its sleek grey finish not only offers a professional look but also integrates seamlessly into various control systems, enhancing both functionality and aesthetics in your projects.
Documentation & Downloads
Specifications
Additional
- Rated Operational Voltage
- 400 V EN/IEC 60947-7-1, 300 V cURus, 300 V CSA
- Number of Measurement Inputs
- 2
- Height
- 36.5 mm (1.44 in)
- Number of Terminals
- 2
- Mounting Mode
- Clip-on
- Connection Position
- Top
- Cable Cross Section
- 0.08-2.5 mm² flexible without cable end, 0.8-4 mm² solid
- Material
- Polyamide 6/6 insulating case
- Dielectric Constant
- 3.7 at 1 MHz
- Surface Resistance
- 1000 GΩ IEC 60093 and VDE 0303-T30
- Flame Retardance
- V0 0.8 mm UL 94
- Operating Temperature Range
- -40 to 130 °C (-40 to 266 °F) IEC 60216-1 and VDE 0304-T21
- RoHS Compliance
- Pro-active EU and China RoHS compliance, RoHS compliant, Free of SVHC
- Country of Origin
- Germany
- Product Name
- Linergy TR
- Device Short Name
- TRR
- Associated Connection Components
- blade, diode, cylindrical fuse
- Range Compatibility
- Prisma G, Prisma P, Prisma PH, Prisma Pack, Spacial, Kaedra, Pragma, TeSys
- Environmental Disclosure
- ENVPEP2309017EN
Rated Current20 A EN/IEC 60947-7-1, 16 A CSA, 16 A cURus
Length60.5 mm (2.38 in)
Width5.2 mm (0.20 in)
Wire Stripping Length10 mm (0.39 in)
Fuse Size5 x 20 mm, 6 x 32 mm
Connections - Terminals1 x spring terminal upstream, 1 x spring terminal downstream
Terminal Block TypeRemovable carrier disconnect
Dielectric Loss0.01 at 1 MHz IEC 60250 and VDE 0303-T4
Resistivity10000 MΩ·m IEC 60093 and VDE 0303-T30
Creep Resistance500 CTI (> 400 kB) IEC 60093 and VDE 0303-T30
Dielectric Strength1000 V IEC 60243-1
Product CertificationscURus, EAC, CSA
SustainabilityGreen Premium product, Mercury free, Halogen free plastic parts
BrandLinergy
Product TypeTerminal block
Terminal Block Level1
Product CompatibilitySpacial enclosures
Circularity ProfileN/A
