Linergy TR Terminal Block, 2 Level, 4 Points, 2.5mm2, Set of 50
Schneider Electric

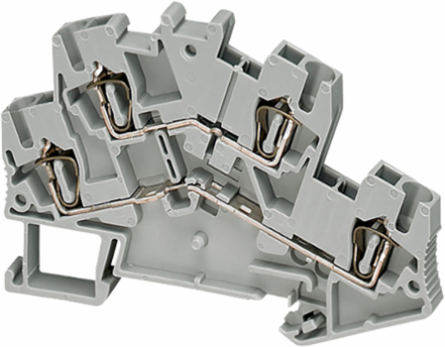

Schneider Electric NSYTRR24D Linergy TR Terminal Block, 2 Level, 4 Points, 2.5mm2, Set of 50

  • MPN: NSYTRR24D
  • PPN: SCH-NSYTRR24D
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $6.48

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 2.5 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA, 300V conforming to cURus and 500V conforming to EN/IEC 60947-7-1. The rated current is 22A conforming to EN/IEC 60947-7-1 and 20A conforming to CSA and cURus. It has grey surface treatment. Mounting by clip-on and top connection by double-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (ATEX, CSA, cURus, DNV, GL, LR, VDE, IEC-Ex, EAC).

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, Germany, France, United States

    Physical Attributes

    Color
    Gray
    Wire Stripping Length10 mm

    Complementary Attributes

    Line Rated Current
    20-20 A CSA, 20-20 A UL, 22-22 A EN/IEC 60947-7-1, 19.5-19.5 A

    Important Information Attributes

    Persona Type Ids
    EU, LC, OM, OM8, PB, SI
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Cable Cross Section
    0.08-4 mm², solid without cable end0.08-2.5 mm², flexible without cable end, 0.08-4 mm², solid with cable end, 0.2-2.5 mm², flexible with cable end
    Dielectric Loss
    0.01 at 1 MHz IEC 60250, 0.01 at 1 MHz VDE 0303-T4
    Resistivity
    10000 MΩ.m IEC 60093, 10000 MΩ.m VDE 0303-T30
    Tool Type
    connection flat screwdriver, disconnection flat screwdriver
    [Ue] Rated Operational Voltage
    500 V EN/IEC 60947-7-1, 300 V CSA, 440 V, 600 V UL
    Carbon Footprint Of The Distribution Phase [A4]
    0.001551937, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]
    0 kg CO2 eq., 0.001395024
    Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
    4 kg CO2 eq., 4.4787
    Local Publishable Date
    2026-06-24
    Stocking Flag
    Y
    Use Carbon Footprint
    4.4787
    Weee Scope
    Out
    Scope Perimeter
    At least in Europe
    Reach Full Compliance Status
    Free of Substances of Very High Concern above the threshold
    Reach Compliance Directive
    Free of Substances of Very High Concern above the threshold
    Rohs Eur Status
    Compliant
    Rohs Eur Full Compliance Status
    Compliant
    China Rohs Label
    1
    Without Single Use Plastic
    Yes
    Tier Id
    2
    Function Option Id
    STANDARD
    Product Kit Identifier
    N
    Connection Position
    top
    Dielectric Constant
    3.7 at 1 MHz
    Flame Retardance
    V0 0.8 mm UL 94
    Nominal Cross Section
    2.5 mm²
    Product Availability
    Stock - Normally stocked in distribution facility
    Product Or Component Type
    terminal block
    Range
    Linergy
    Returnability
    Yes
    Sustainable Packaging
    Yes
    Terminal Block Type
    passthrough
    Pep Code
    ENVPEP2309017EN
    Pep Verification Date
    2023-12-03
    Psr Version
    PSR-0005-ed2-2016 03 29
    Data Source
    extrapolated product
    Functional-unit Quantity
    1
    Reference Lifetime, In Y
    20
    Energy Model - Installation [A5]
    Electricity Mix; Production mix; Low voltage; UE-27
    Energy Model - End Of Life [C1-c4]
    Electricity Mix; Production mix; Low voltage; UE-27
    Height Nominal
    55 mm
    Width Nominal
    5.2 mm
    Halogen-free Status
    Halogen free plastic parts product
    Package Weight(Lbs)
    12.000 g
    Take-back
    No
    Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]
    4.4727
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
    114.1
    Ionizing Radiation, Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]
    6.6592
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
    21.911
    Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
    21.911
    Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
    Market SegmentationCommercial, Industrial
    Creep Resistance500 CTI (> 400 kB) IEC 60093, 500 CTI (> 400 kB) VDE 0303-T30
    Materialpolyamide 6/6: insulating case, copper alloy: connector and screw, copper alloy: commoning link, chromium-nickel steel: spring
    Surface Resistance1000 GΩ IEC 60093, 1000 GΩ VDE 0303-T30
    Certificate AgencyUL, GL, VDE, DNV, CSA
    Connections - Terminals1 x spring terminal upstream, 1 x spring terminal downstream
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.03049812, 0 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.1 kg CO2 eq., 0.0730866
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy1
    Weee ApplicabilityComponent
    Weee Exclusion RationaleComponent not in scope – non independent function
    Eoli Availability DisplayNo need of specific recycling operations
    Reach Full Compliance Status IdNOT_CONTAINING_SVHC
    Rohs Eur In ScopeYes
    Rohs Eur Conformity Date2518
    China Rohs In ScopeNo
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier2
    Function OptionStandard
    Compatibility Codeterminal block
    Device Short NameTRR
    Dielectric Strength1000 V IEC 60243-1
    Mounting Modeclip-on
    Number Of Terminals2
    Product NameLinergy TR
    Quantity Per Setset of 50
    Range Of ProductLinergy
    Software Versionv5.9.4
    Terminal Block Level2
    Total Lifecycle Carbon Footprint5 kg CO2 eq.
    Database Version2022-01
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent external review
    Functional-unit DescriptionConnect during 20 years 2 clamping units between 2 or more wires with a rated connecting capacity 20.5 A, a rated cross section 2.5 mm2, a rated voltage 550 V, a Short-time withstand current 0.3 kA.
    Functional-unit Unitunit
    Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; GE
    Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27
    Recyclability Potential, In %37
    Length Total78 mm
    Accessory / Separate Part Categoryconnection accessory
    Nbr. Of Units In Pkg.1
    Silicone-freeYes
    Warranty (In Months)18
    Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]4.4787
    Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]48.232
    Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]136.02
    Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]114.1

    Environment Attributes Main

    China Rohs Regulation
    Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
    Take Back
    No
    Halogene Performance
    Halogen free plastic parts product
    Toxic Heavy Metal Free
    Yes
    Silicon Free
    Yes
    Environmental Disclosure
    ENVPEP2309017EN
    Halogen Content Performance
    Halogen free plastic parts product
    Packaging Without Single Use Plastic
    Yes
    Reach Free Of Svhc
    Yes
    Pep Code
    ENVPEP2309017EN
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent external review
    Ambient Air Temperature For Operation-40-130 °C IEC 60216-1, -40-130 °C IEC 60216-1, -40-130 °C VDE 0304-T21, -40-130 °C VDE 0304-T21-40-130 °C IEC 60216-1, -40-130 °C IEC 60216-1, -40-130 °C VDE 0304-T21
    Reach Free ShvcYes
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Carbon Footprint4.585231681
    Eu Rohs DirectiveCompliant
    Packaging Made With Recycled CardboardYes
    Product CompatibilitySpacial enclosures
    Reach RegulationFree of Substances of Very High Concern above the threshold
    Pep Verification Date2023-12-03
    Psr VersionPSR-0005-ed2-2016 03 29
