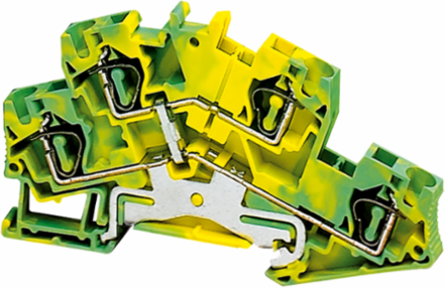

Schneider Electric NSYTRR44DPE Terminal Block, Linergy TR, 4 Points, 4 mm², Green-Yellow, Set of 50
- MPN: NSYTRR44DPE
- PPN: SCH-NSYTRR44DPE
CAD
$21.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This set of terminal blocks by Schneider Electric is designed for efficient and reliable electrical connections. The Linergy TR model features four points, each capable of accommodating wire sizes up to 4 mm², ideal for various automation and control applications. With a vibrant green-yellow color coding, these terminal blocks not only ensure safe identification of connections but also enhance organization within your projects. Available in a convenient set of 50, this product is suited for professionals seeking to streamline their installation processes while maintaining high standards of electrical safety and performance.
Documentation & Downloads
Specifications
Additional
- Terminal Block Type
- Protective earth
- Nominal Cross Section
- 4 mm²
- Dielectric Strength
- 1000 V IEC 60243-1
- Dielectric Constant
- 3.7 at 1 MHz
- Surface Resistance
- 1000 GΩ IEC 60093 / VDE 0303-T30
- Operating Temperature
- -40 to 130 °C IEC 60216-1 / VDE 0304-T21
- Connection Position
- Top
- Length
- 92.4 mm (3.64 in)
- Height
- 55 mm (2.17 in)
- Cable Cross Section
- 0.08-4 mm² solid or flexible
- Connections - Terminals
- 1 x spring terminal upstream, 1 x spring terminal downstream
- Net Weight
- 23.2 g (0.82 oz)
- Product Certifications
- ATEX, DNV, VDE, cURus, GL, IECEx, LR, CSA, EAC
- Halogen Content
- Halogen free plastic parts
Terminal Block Level2
Number of Terminals2
Dielectric Loss0.01 at 1 MHz IEC 60250 / VDE 0303-T4
Resistivity10,000 MΩ·m IEC 60093 / VDE 0303-T30
Creep Resistance500 CTI (> 400 kB) IEC 60093 / VDE 0303-T30
Wire Stripping Length10 mm
Mounting ModeClip-on
Width6.2 mm (0.24 in)
Number of Measurement Input4
Tool TypeFlat screwdriver (connection and disconnection)
MaterialPolyamide 6/6 insulating case
Flame RetardanceV0 0.8 mm UL 94
ComplianceREACH, RoHS, China RoHS (Pro-active declarations)
