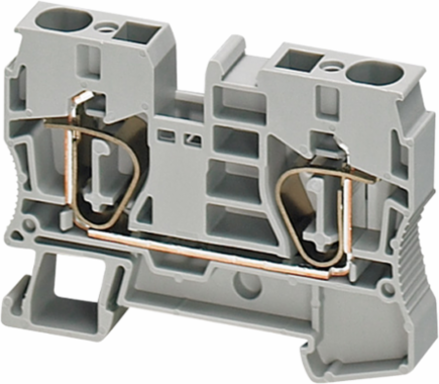

Linergy TR Terminal Block, 10mm2, 2 Points, Halogen Free, Grey
Schneider Electric

Schneider Electric NSYTRR102 Linergy TR Terminal Block, 10mm2, 2 Points, Halogen Free, Grey

  • MPN: NSYTRR102
  • PPN: SCH-NSYTRR102
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $6.02

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    The Schneider Electric NSYTRR102 Linergy TR Terminal Block offers a dependable solution for efficient electrical connections in automation and control applications. Designed to handle wire sizes of 10mm2 with two connection points, this terminal block is suitable for a variety of industrial environments. Its halogen-free construction enhances safety by reducing potential hazards in case of fire, making it an essential choice for reliable and sustainable electrical installations. The sleek grey finish adds a professional touch, integrating well into any system while ensuring robust performance in demanding situations.

    Documentation & Downloads

    Specifications

    Additional

    Rated Operational Voltage
    600 V CSA, 800 V EN/IEC 60947-7-1, 600 V cURus
    Nominal Cross Section
    10 mm2
    Wire Stripping Length
    18 mm
    Width
    10.2 mm (0.40 in)
    Number of Connection Points
    2
    Connection Position
    Top
    Material
    Polyamide 6/6 (insulating case), Copper alloy (connector, screw, and commoning link), Chromium-nickel steel (spring)
    Dielectric Strength
    1000 V IEC 60243-1
    Ambient Air Temperature for Operation
    -40 to 130 C
    Warranty
    18 months
    Country of Origin
    Poland
    Line Rated Current57 A EN/IEC 60947-7-1, 65 A CSA, 65 A cURus
    Wire Size Range0.2-10 mm2 flexible without cable end, 0.2-16 mm2 solid with cable end, 0.5-10 mm2 flexible with cable end, 0.2-16 mm2 solid without cable end
    Length71.5 mm (2.81 in)
    Height50.5 mm (1.99 in)
    Terminal Block TypePassthrough
    Mounting ModeClip-on
    Flame RetardanceV0 0.8 mm UL 94
    Halogen ContentHalogen free plastic parts
    ComplianceVDE, CSA, GL, DNV, cURus, ATEX, LR, EAC, IECEx, RoHS compliant, REACh SVHC free
    ColorGrey
