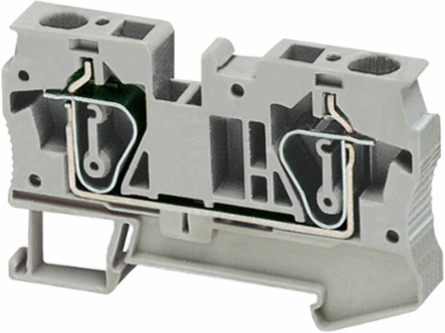

Schneider Electric NSYTRR62BL Linergy TR Terminal Block 6mm² 2 Points Set of 50
- MPN: NSYTRR62BL
- PPN: SCH-NSYTRR62BL
CAD
$4.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Schneider Electric NSYTRR62BL Linergy TR Terminal Block is a robust solution designed for efficient electrical connections in automation and control applications. This set of 50 terminal blocks features a compact design, accommodating wire sizes of up to 6mm² and providing two connection points for reliable functionality. Engineered for ease of installation and a secure grip, these terminal blocks ensure that your electrical systems maintain optimal performance and safety standards. Perfectly suitable for various industrial environments, they are a smart choice for panel builders and electrical engineers looking for dependable connectivity solutions.
Documentation & Downloads
Specifications
Additional
- Rated Operational Voltage
- 600 V CSA, 800 V EN/IEC 60947-7-1, 600 V cURus
- Length
- 69.5 mm (2.74 in)
- Height
- 43.5 mm (1.71 in)
- Connection Type
- 1 x spring terminal upstream, 1 x spring terminal downstream
- Mounting Mode
- Clip-on
- Wire Stripping Length
- 12 mm (0.47 in)
- Net Weight
- 16.8 g
- Flame Retardance
- V0 0.8 mm UL 94
- Color
- Blue
- Mercury Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above threshold
- Ambient Temperature Range
- -40 to 130 °C (-40 to 266 °F) IEC 60216-1 / VDE 0304-T21
- Dielectric Constant
- 3.7 at 1 MHz
- Creep Resistance
- 500 CTI (> 400 kB) IEC 60093 / VDE 0303-T30
- Product Certifications
- VDE, CSA, GL, EAC, DNV, LR, ATEX, IECEx, cURus
- Range
- Linergy
- Device Short Name
- TRR
- Nominal Cross Section
- 6 mm²
- Sustainable Offer Status
- Green Premium product
- Reach Free Of Svhc
- Yes
- Eu Rohs Directive
- Pro-active compliance (out of EU RoHS legal scope)
- Circularity Profile
- N/A
- Product Or Component Type
- Terminal block
- Country of Origin
- Germany
Rated Current41 A EN/IEC 60947-7-1, 50 A CSA, 50 A cURus
Width8.2 mm (0.32 in)
Number of Terminals2
Connection PositionTop
Wire Size Range0.5-6 mm² flexible without cable end, 0.2-10 mm² solid with cable end, 0.2-6 mm² flexible with cable end, 0.2-6 mm² solid without cable end
Terminal Block TypePassthrough
MaterialPolyamide 6/6 (insulating case), Copper alloy (connector and screw), Copper alloy (commoning link), Chromium-nickel steel (spring)
Dielectric Strength1000 V IEC 60243-1
ComplianceVDE, CSA, GL, EAC, DNV, LR, ATEX, IECEx, cURus, REACh, RoHS, China RoHS
Toxic Heavy Metal FreeYes
Environmental DisclosureENVPEP2309017EN
Surface Resistance1000 GΩ IEC 60093 / VDE 0303-T30
Dielectric Loss0.01 at 1 MHz IEC 60250 / VDE 0303-T4
Resistivity10000 MΩ.m IEC 60093 / VDE 0303-T30
Product CompatibilitySpacial enclosures
Range CompatibilityPrisma G, Prisma P, Prisma PH, Prisma Pack, Spacial, Kaedra, Pragma, TeSys
Terminal Block Level1
Accessory / Separate Part CategoryConnection accessory
Halogen Content PerformanceHalogen free plastic parts
Rohs Exemption InformationYes
China Rohs RegulationPro-active China RoHS declaration (out of legal scope)
Accessory / Separate Part Categoryconnection accessory
BrandSchneider Electric
