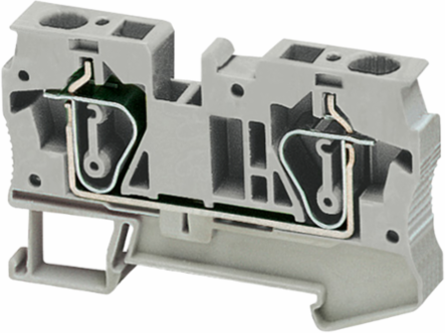

Schneider Electric NSYTRR62 Linergy TR Terminal Block, 6mm², 41A, Set of 50, Grey
- MPN: NSYTRR62
- PPN: SCH-NSYTRR62
CAD
$4.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 6 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/cURus and 800V conforming to EN/IEC 60947-7-1. The rated current is 41A conforming to EN/IEC 60947-7-1 and 50A conforming to CSA and cURus. It has grey surface treatment. Mounting by clip-on and top connection by single-level 1x1 screw terminals. It could be connection and disconnection by flat screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (ATEX, CSA, cURus, DNV, GL, LR, VDE, IEC-Ex, EAC). It is compliant with Green Premium (RoHS/REACH).
Documentation & Downloads
Specifications
Key Specifications
- Terminal Block Type
- passthrough
- Product Or Component Type
- terminal block
- Length
- 69.5 mm
- Mounting Mode
- clip-on
- Nominal Cross Section
- 6 mm²
- Colour
- grey
Accessory / Separate Part Categoryconnection accessory
Product NameLinergy TR
RangeLinergy
Terminal Block Level1
Quantity Per Setset of 50
Device Short NameTRR
Complementary
- Dielectric Loss
- 0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4
- Number Of Terminals
- 2
- Cable Cross Section
- 0.5-6 mm², flexible without cable end || 0.2-10 mm², solid with cable end || 0.2-6 mm², flexible with cable end || 0.2-6 mm², solid without cable end
- Number Of Measurement Input
- 2
- Net Weight
- 16.8 g
- Wire Stripping Length
- 12 mm
- Dielectric Constant
- 3.7 at 1 MHz
- Surface Resistance
- 1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30
- Range Compatibility
- Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys
- [In] Rated Current
- 41-41 A EN/IEC 60947-7-1 || 50-50 A CSA || 50-50 A cURus
- [Ue] Rated Operational Voltage
- 600 V CSA || 800 V EN/IEC 60947-7-1 || 600 V cURus
Height43.5 mm
Connections - Terminals1 x spring terminal upstream || 1 x spring terminal downstream
Connection Positiontop
Tool Typeconnection flat screwdriver || disconnection flat screwdriver
Flame RetardanceV0 0.8 mm UL 94
Resistivity10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30
Materialpolyamide 6/6: insulating case || copper alloy: connector and screw || copper alloy: commoning link || chromium-nickel steel: spring
Width8.2 mm
Product CompatibilitySpacial enclosures
Creep Resistance500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30
Environment
- Product Certifications
- VDE || DNV || CSA || IEC-Ex || GL || cURus || LR || EAC || ATEX
- Dielectric Strength
- 1000 V IEC 60243-1
Ambient Air Temperature For Operation-40-130 °C IEC 60216-1 || -40-130 °C VDE 0304-T21
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2309017EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Circularity Profile
- N/A
- Halogen Content Performance
- Halogen free plastic parts product
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationPro-active China RoHS declaration (out of China RoHS legal scope)
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
