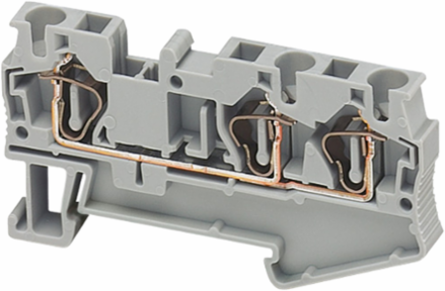

Linergy TR Terminal Block, 3 Points, 4mm², Grey, Set of 50
Schneider Electric

Schneider Electric NSYTRR43 Linergy TR Terminal Block, 3 Points, 4mm², Grey, Set of 50

  • MPN: NSYTRR43
  • PPN: SCH-NSYTRR43
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $5.15

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    Designed for efficiency in automation and control applications, the Schneider Electric NSYTRR43 Linergy TR Terminal Block features a robust design that accommodates three points and connects wires with a cross-section of 4mm². Available in a set of 50, these terminal blocks provide reliable electrical connections while maintaining a sleek grey finish that blends seamlessly into any panel setup. Perfectly suited for industrial and commercial use, they ensure organized wiring and facilitate ease of maintenance, making them an essential component for professionals looking to optimize their electrical systems.

    Documentation & Downloads

    Specifications

    Additional

    Rated Operational Voltage
    600 V CSA, 800 V EN/IEC 60947-7-1, 600 V cURus
    Dielectric Strength
    1000 V IEC 60243-1
    Length
    71.5 mm (2.81 in)
    Height
    36.5 mm (1.44 in)
    Terminal Block Type
    Passthrough
    Connections - Terminals
    1 spring terminal upstream, 2 spring terminals downstream
    Wire Stripping Length
    10 mm (0.39 in)
    Flame Retardance
    V0 0.8 mm UL 94
    Resistivity
    10000 MΩ·m IEC 60093, VDE 0303-T30
    Creep Resistance
    500 CTI (>400 kB) IEC 60093, VDE 0303-T30
    Dielectric Loss
    0.01 at 1 MHz IEC 60250, VDE 0303-T4
    Country of Origin
    Germany
    Sustainability
    Green Premium product, halogen-free plastic parts
    Warranty
    18 months
    Tool Type
    Flat screwdriver for connection and disconnection
    Product Type
    Terminal block
    Line Rated Current32 A EN/IEC 60947-7-1, 30 A CSA, 30 A cURus
    Number of Measurement Inputs2
    Width6.2 mm (0.24 in)
    Number of Terminals3
    Connection PositionTop
    Cable Cross Section Range0.08–6 mm² (solid and flexible)
    MaterialPolyamide 6/6 (insulating case), copper alloy (connector, screw, commoning link), chromium-nickel steel (spring)
    Ambient Air Temperature for Operation-40 to 130 °C IEC 60216-1, VDE 0304-T21
    Surface Resistance1000 GΩ IEC 60093, VDE 0303-T30
    Dielectric Constant3.7 at 1 MHz
    ColorGray
    Product CertificationsVDE, IEC-Ex, ATEX, DNV, LR, cURus, CSA, GL, EAC, RoHS
    CE ComplianceREACH SVHC Free, RoHS compliant, Mercury Free, Toxic Heavy Metal Free
    Product CompatibilitySpacial enclosures
    Range CompatibilityPrisma G, Prisma P, Prisma PH, Prisma Pack, Spacial, Kaedra, Pragma, TeSys
