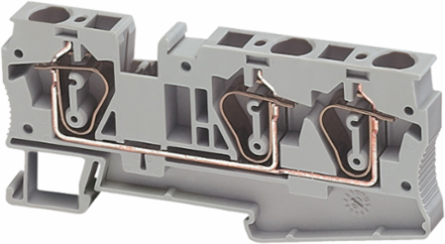

Linergy TR Terminal Block, 3 Points, 6 mm², Set of 50, Grey
Schneider Electric

Schneider Electric NSYTRR63 Linergy TR Terminal Block, 3 Points, 6 mm², Set of 50, Grey

  • MPN: NSYTRR63
  • PPN: SCH-NSYTRR63
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $8.05

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    The Schneider Electric NSYTRR63 Linergy TR Terminal Block is engineered for versatility and reliability in automation and control applications. Each block accommodates three connection points for 6 mm² wires, making them an efficient choice for use in a variety of electrical setups. Supplied in a convenient set of 50, these grey terminal blocks offer practical solutions for organizing electrical connections, whether in industrial environments or panel building. Their robust design ensures dependable performance, allowing for seamless integration into your projects.

    Documentation & Downloads

    Specifications

    Additional

    Rated Operational Voltage
    600 V CSA, 800 V EN/IEC 60947-7-1, 600 V cURus
    Number of Terminals
    3
    Ambient Temperature Range
    -40 to 130 °C IEC 60216-1 / VDE 0304-T21
    Width
    8.2 mm (0.32 in.)
    Connection Type
    spring terminal (1 upstream + 2 downstream)
    Material
    polyamide 6/6 (insulating case), copper alloy (connector, screw, commoning link), chromium-nickel steel (spring)
    Dielectric Loss
    0.01 at 1 MHz IEC 60250 / VDE 0303-T4
    Resistivity
    10000 MΩ·m IEC 60093 / VDE 0303-T30
    Creep Resistance
    500 CTI (> 400 kB) IEC 60093 / VDE 0303-T30
    Color
    gray
    RoHS Exemption Information
    Yes
    Mercury Free
    Yes
    Compliance
    EAC, IECEx, VDE, GL, DNV, LR, ATEX, CSA, cURus
    Rated Current41 A EN/IEC 60947-7-1, 50 A CSA, 50 A cURus
    Nominal Cross Section6 mm²
    Length90.5 mm (3.56 in.)
    Height43.5 mm (1.71 in.)
    Mounting Modeclip-on
    Flame RetardanceV0 0.8 mm UL 94
    Dielectric Constant3.7 at 1 MHz
    Surface Resistance1000 GΩ IEC 60093 / VDE 0303-T30
    Dielectric Strength1000 V IEC 60243-1
    Country of OriginPoland
    Toxic Heavy Metal FreeYes
    Halogen Content PerformanceHalogen free plastic parts
