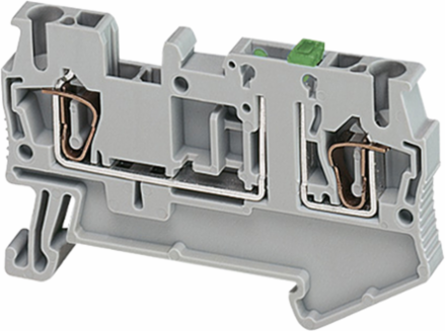

Terminal Block Linergy TR, 2 Points, 2.5 mm², 60.5 mm Long, Grey
Schneider Electric

Schneider Electric NSYTRR22SC Terminal Block Linergy TR, 2 Points, 2.5 mm², 60.5 mm Long, Grey

  • MPN: NSYTRR22SC
  • PPN: SCH-NSYTRR22SC
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $9.77

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This terminal block from Schneider Electric is a reliable choice for enhancing automation and control systems. Designed with two connection points and accommodating wire sizes up to 2.5 mm², it provides robust performance for various applications. Measuring 60.5 mm in length and featuring a sleek grey design, this component integrates seamlessly into existing setups while ensuring efficient electrical connectivity. Trust in its quality as a standard feature within Terminal Blocks to help streamline your wiring processes effectively.

    Documentation & Downloads

    Specifications

    Additional

    Rated Operational Voltage
    300 V CSA, 400 V EN/IEC 60947-7-1, 600 V cURus
    Number of Terminals
    2
    Wire Size Range
    0.08-2.5 mm² flexible, 0.8-4 mm² solid
    Height
    36.5 mm
    Terminal Block Type
    Blade disconnect
    Wire Stripping Length
    10 mm
    Mounting Mode
    Clip-on
    Flame Retardance
    V0 0.8 mm UL 94
    Dielectric Constant
    3.7 at 1 MHz
    Surface Resistance
    1000 GΩ IEC 60093
    Dielectric Strength
    1000 V IEC 60243-1
    RoHS Compliance
    Pro-active compliance (out of EU RoHS legal scope)
    Halogen Content
    Halogen free plastic parts
    Rated Current20 A EN/IEC 60947-7-1, 16 A CSA, 16 A cURus
    Ambient Air Temperature for Operation-40 to 130 °C IEC 60216-1
    Length60.5 mm
    Width5.2 mm
    Connection PositionTop
    Net Weight8 g
    MaterialPolyamide 6/6 insulating case
    Dielectric Loss0.01 at 1 MHz IEC 60250
    Resistivity10000 MΩ·m IEC 60093
    Creep Resistance500 CTI (> 400 kB) IEC 60093
    CertificationsCSA, EAC, cURus
    REACH ComplianceFree of SVHC above threshold
    ColorGrey
