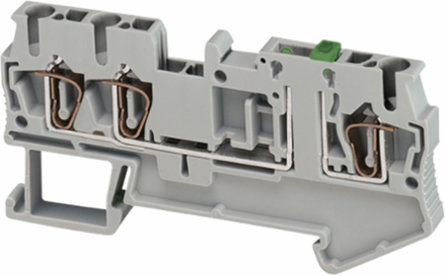

Schneider Electric NSYTRR23SC Linergy TR Terminal Block, 2.5 mm2, 3 Points, 72 mm Length, Grey
- MPN: NSYTRR23SC
- PPN: SCH-NSYTRR23SC
CAD
$11.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Schneider Electric NSYTRR23SC Linergy TR Terminal Block is an excellent choice for automation and control applications, designed to ensure efficient and reliable electrical connections. With a capacity of 2.5 mm2 and featuring three points, this terminal block provides versatile wiring options while maintaining a compact 72 mm length that fits well in tight spaces. Its grey finish adds a neutral aesthetic that blends seamlessly into your setup, making it a practical and functional addition to any terminal block arrangement. This product is engineered to meet the demands of modern electrical systems, offering durability and ease of use for various industrial applications.
Documentation & Downloads
Specifications
Additional
- Rated Operational Voltage
- 300 V CSA, 400 V EN/IEC 60947-7-1, 600 V cURus
- Operating Temperature Range
- -40 to 130 C IEC 60216-1
- Width
- 5.2 mm
- Net Weight
- 9.1 g
- Number of Measurement Input
- 2
- Mounting Mode
- Clip-on
- Cable Cross Section
- 0.08-2.5 mm2 flexible, 0.8-4 mm2 solid
- Terminal Block Type
- Blade disconnect
- Material
- Polyamide 6/6 (insulating case)
- Dielectric Loss
- 0.01 at 1 MHz IEC 60250
- Resistivity
- 10000 M m IEC 60093
- Creep Resistance
- 500 CTI (> 400 kB) IEC 60093
- Product Certifications
- cURus, EAC, CSA
- EU RoHS Directive
- Pro-active compliance
- Halogen Content Performance
- Halogen free plastic parts
- Reach Regulation
- Free of Substances of Very High Concern
- Mercury Free
- Yes
- Country of Origin
- Germany
- Device Short Name
- TRR
Rated Current20 A EN/IEC 60947-7-1, 16 A CSA, 16 A cURus
Length72 mm
Height36.5 mm
Number of Terminals3
Connection PositionTop
Nominal Cross Section2.5 mm2
Wire Stripping Length10 mm
Terminal Block Level1
Flame RetardanceV0 0.8 mm UL 94
Dielectric Constant3.7 at 1 MHz
Surface Resistance1000 G IEC 60093
Dielectric Strength1000 V IEC 60243-1
RoHS Exemption InformationYes
China RoHS RegulationPro-active declaration
Reach Free Of SVHCYes
Toxic Heavy Metal FreeYes
ColorGrey
BrandLinergy
Product NameLinergy TR
