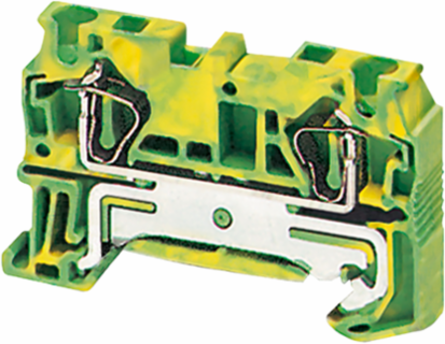

Schneider Electric NSYTRR42PE Terminal Block Linergy TR, 4 mm², Protective Earth, Set of 50
- MPN: NSYTRR42PE
- PPN: SCH-NSYTRR42PE
CAD
$13.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Linergy TR is terminal block for Linergy. It belongs to linergy earth terminal block with 4 mm² nominal cross section. It has grey surface treatment. Mounting by clip-on and top connection by single-level 1x1 screw terminals. It could be connection and disconnection by flat screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (ATEX, CSA, cURus, DNV, GL, LR, VDE, IEC-Ex, EAC). It is compliant with Green Premium (RoHS/REACH).
Documentation & Downloads
Specifications
Key Specifications
- Terminal Block Type
- protective earth
- Product Name
- Linergy TR
- Range
- Linergy
- Terminal Block Level
- 1
- Quantity Per Set
- set of 50
- Device Short Name
- TRR
Product Or Component Typeterminal block
Length56 mm
Mounting Modeclip-on
Nominal Cross Section4 mm²
Colourgreen-yellow
Complementary
- Dielectric Loss
- 0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4
- Number Of Terminals
- 2
- Cable Cross Section
- 0.08-4 mm², solid || 0.2-4 mm², flexible with cable end || 0.08-4 mm², flexible without cable end
- Number Of Measurement Input
- 2
- Net Weight
- 12.7 g
- Wire Stripping Length
- 10 mm
- Dielectric Constant
- 3.7 at 1 MHz
- Surface Resistance
- 1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30
- Range Compatibility
- Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys
- Creep Resistance
- 500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30
Height36.5 mm
Connections - Terminals1 x spring terminal upstream || 1 x spring terminal downstream
Connection Positiontop
Tool Typeconnection flat screwdriver || disconnection flat screwdriver
Flame RetardanceV0 0.8 mm UL 94
Resistivity10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30
Materialpolyamide 6/6: insulating case
Width6.2 mm
Product CompatibilitySpacial enclosures
Environment
- Product Certifications
- cURus || LR || GL || IEC-Ex || DNV || EAC || CSA || ATEX || VDE
- Dielectric Strength
- 1000 V IEC 60243-1
Ambient Air Temperature For Operation-40-130 °C IEC 60216-1 || -40-130 °C VDE 0304-T21
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2309021EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Circularity Profile
- N/A
- Halogen Content Performance
- Halogen free plastic parts product
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationPro-active China RoHS declaration (out of China RoHS legal scope)
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
