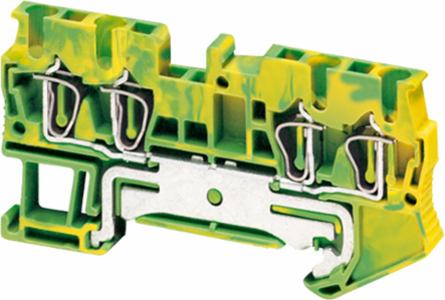

Schneider Electric NSYTRR24PE Linergy TR Terminal Block, 4 Points, 2.5 mm², Green-Yellow, Set of 50
- MPN: NSYTRR24PE
- PPN: SCH-NSYTRR24PE
CAD
$15.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Schneider Electric Linergy TR Terminal Block is an essential component for automation and control applications, designed to facilitate efficient connections in electrical systems. With a configuration of four points and a conductor size of 2.5 mm², these terminal blocks are particularly well-suited for various wiring setups. Each set contains 50 units, each finished in a vibrant green-yellow color, which aids in easy identification and promotes effective organization within electrical panels. This product not only ensures reliable connections but also enhances the overall safety and functionality of your automation projects.
Documentation & Downloads
Specifications
Additional
- Number of Measurement Inputs
- 2
- Cable Cross Section
- 0.08-4 mm6 solid, 0.2-2.5 mm6 flexible with cable end, 0.08-2.5 mm6 flexible without cable end
- Dielectric Strength
- 1000 V IEC 60243-1
- Length
- 72 mm (2.83 in)
- Height
- 36.5 mm (1.44 in)
- Color
- Green-yellow
- Connection Position
- Top
- Tool Type
- Flat screwdriver
- Surface Resistance
- 1000 G6 IEC 60093, VDE 0303-T30
- Flame Retardance
- V0 0.8 mm UL 94
- Compliance
- EU RoHS, China RoHS, REACh
- Device Short Name
- TRR
- Product Or Component Type
- Terminal block
- China RoHS Regulation
- Pro-active China RoHS declaration (out of legal scope)
- Mercury Free
- Yes
- Terminal Block Level
- 1
- Reach Regulation
- Free of Substances of Very High Concern above threshold
- Reach Free Of Svhc
- Yes
- Circularity Profile
- N/A
- RoHS Exemption Information
- Yes
Nominal Cross Section2.5 mm6
Number of Terminals4
Ambient Air Temperature for Operation-40 to 130 6C IEC 60216-1
Width5.2 mm (0.20 in)
MaterialPolyamide 6/6 (insulating case)
Mounting ModeClip-on
Connections - Terminals2 x spring terminal downstream, 2 x spring terminal upstream
Resistivity10000 M6.m IEC 60093, VDE 0303-T30
Creep Resistance500 CTI (> 400 kB) IEC 60093, VDE 0303-T30
Product CertificationsVDE, DNV, ATEX, CSA, cURus, IECEx, EAC, LR, GL
Halogen Content PerformanceHalogen free plastic parts
RangeLinergy
Environmental DisclosureENVPEP2309021EN
EU RoHS DirectiveCompliant
Product CompatibilitySpacial enclosures
Warranty18 months
Toxic Heavy Metal FreeYes
Range CompatibilityPrisma G, Prisma P, Prisma PH, Prisma Pack, Spacial, Kaedra, Pragma, TeSys
Dielectric Loss0.01 at 1 MHz IEC 60250, VDE 0303-T4
