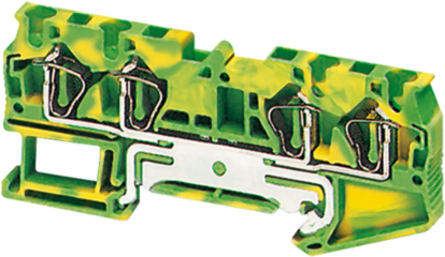

Schneider Electric NSYTRR44PE Linergy TR Terminal Block, 4 Points, 4 mm², Green-Yellow, Set of 50
- MPN: NSYTRR44PE
- PPN: SCH-NSYTRR44PE
CAD
$20.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Schneider Electric NSYTRR44PE Linergy TR Terminal Block offers a reliable connection solution for your automation and control needs. Designed to accommodate four points with a cross-section of 4 mm², these terminal blocks are efficiently packaged in sets of 50, ensuring you have ample parts for your projects. Featuring a distinct green-yellow color for easy identification, these blocks facilitate organized wiring layouts, making them an essential component for panel builders and electrical installations. With their robust design, you can trust in the lasting performance of these terminal blocks in various industrial applications.
Documentation & Downloads
Specifications
Additional
- Terminal Block Type
- protective earth
- Nominal Cross Section
- 4 mm²
- Wire Stripping Length
- 10 mm
- Dielectric Loss
- 0.01 at 1 MHz IEC 60250
- Creep Resistance
- 500 CTI (> 400 kB) IEC 60093
- Ambient Air Temperature for Operation
- -40 to 130 °C IEC 60216-1
- Width
- 6.2 mm (0.24 in)
- Connection Position
- top
- Connections - Terminals
- 2 x spring terminal downstream, 2 x spring terminal upstream
- Material
- polyamide 6/6 insulating case
- Surface Resistance
- 1000 GΩ IEC 60093
- Compliance
- cURus, LR, IECEx, EAC, ATEX, GL, CSA, VDE, DNV
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of SVHC above threshold
- China RoHS Regulation
- Pro-active declaration (out of China RoHS legal scope)
- Color
- green-yellow
Number of Terminals4
Cable Cross Section0.08-4 mm² solid, 0.2-4 mm² flexible with cable end, 0.08-4 mm² flexible without cable end
Number of Measurement Inputs2
Dielectric Constant3.7 at 1 MHz
Dielectric Strength1000 V IEC 60243-1
Length87 mm (3.43 in)
Height36.5 mm (1.44 in)
Mounting Modeclip-on
Net Weight17.7 g (0.62 oz)
Resistivity10000 MΩ·m IEC 60093
Flame RetardanceV0 0.8 mm UL 94
Eu RoHS DirectivePro-active compliance (out of EU RoHS legal scope)
Halogen Content PerformanceHalogen free plastic parts
Reach Free Of SvhcYes
Mercury FreeYes
