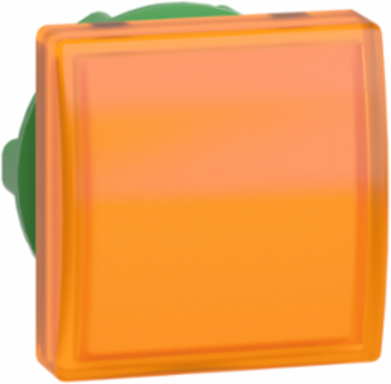

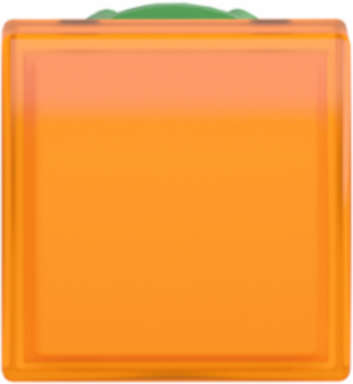

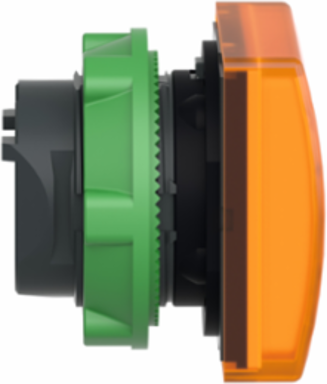

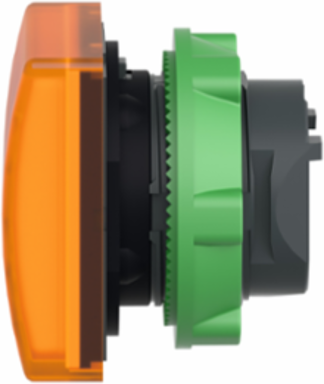

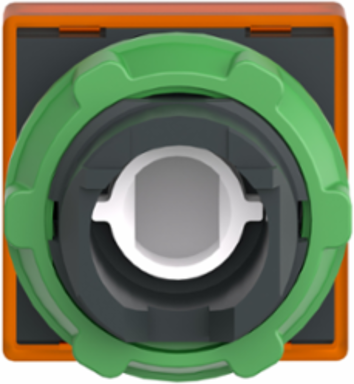

Schneider Electric ZB5CV053 Harmony XB5 22mm Square Orange Pilot Light Head, IP66, Universal LED
- MPN: ZB5CV053
- PPN: SCH-ZB5CV053
CAD
$24.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This orange plain lens head for integral LED pilot light is designed to last without maintenance. It offers a bright indicator of process and machine operations. It is clearly distinguishable visually at a distance thanks to a clear color of len. It enables complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
Documentation & Downloads
Specifications
Key Specifications
- Operator Additional Information
- with plain lens
- Mounting Diameter
- 22 mm
- Shape Of Signaling Unit Head
- square
- Head Type
- standard
- Bezel Material
- dark grey plastic
- Device Short Name
- ZB5
Range Of ProductHarmony XB5
Product Or Component Typehead for pilot light
Cap/Operator Or Lens Colouryellow
Sale Per Indivisible Quantity1
Product Compatibilityuniversal LED
Complementary
- Electrical Composition Code
- P1 front mounting integral LED || P2 front mounting integral LED and transformer || PF1 front mounting integral LED || PR1 rear mounting integral LED
- Cad Overall Height
- 30 mm
- Station Name
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Cad Overall Depth
- 29 mm
Net Weight0.02 kg
Device Presentationbasic element
Cad Overall Width30 mm
Environment
- Ik Degree Of Protection
- IK05 conforming to IEC 50102
- Standards
- EN/IEC 60947-1 || EN/IEC 60947-5-5 || UL 508 || JIS C8201-5-1 || CSA C22.2 No 14 || EN/IEC 60947-5-4 || EN/IEC 60947-5-1 || JIS C8201-1
- Vibration Resistance
- 5 gn 2-500 Hz)IEC 60068-2-6
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
- Overvoltage Category
- class II IEC 60536
- Protective Treatment
- TH
Ambient Air Temperature For Operation-25-70 °C
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ip Degree Of ProtectionIP66 IEC 60529
Ambient Air Temperature For Storage-40-70 °C
Nema Degree Of ProtectionNEMA 13 || NEMA 4X
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1710010EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Circularity Profile
- ENVEOLI1710010EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Important Information
- Important Message
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
