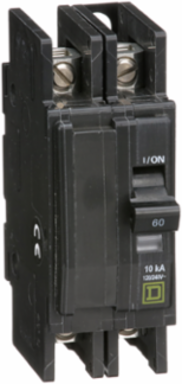

Square D QOU260 Mini Circuit Breaker, 60A, 2 Pole, 120/240V AC, 10kA, UL Listed
- MPN: QOU260
- UPC: 785901418801
- PPN: SCH-QOU260
CAD
$290.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
QO™ and QOU Miniature Circuit Breakers, QOU260, is ideal for OEM applications. QOU miniature circuit breakers are used for overcurrent protection and switching on both AC and DC electrical systems. These Breakers These Breakers provide a means to manually open a circuit.
Documentation & Downloads
Specifications
Additional
- Voltage
- 120/240 V AC, 120 V AC, 48 V DC
- Circuit Breaker Application
- HACR rated
- Breaking Capacity
- 10 kA
- Tightening Torque
- 45 lbf.in (5.08 N.m)
- Width
- 1.5 in (38.10 mm)
- AWG Gauge
- AWG 14 to AWG 2 aluminum/copper
- Electrical Connection
- Slotted box lugs, line side and load side
- Compliance
- UL Listed, CSA, IEC, RoHS Exemptions, REACH Restricted Substances, China RoHS Info, EU RoHS Directive Compliant
- Warranty
- 18 months
- Range Of Product
- QOU
Amperage60 A
Circuit Breaker TypeStandard
Poles2
Height4.05 in (102.87 mm)
Depth2.95 in (74.93 mm)
Mounting ModeUnit mount
MaterialMercury Free, Halogen Free, Toxic Heavy Metal Free
Country of OriginMexico
Product TypeMiniature circuit breaker
