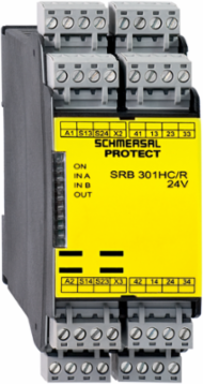

Schmersal 101190594 Safety Tactile Sensor 24 VDC, 3 Safety Contacts, IP40 Enclosure
- MPN: 101190594
- PPN: SCM-101190594
CAD
$598.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Safety Tactile Sensor 24 VDC, 3 Safety Contacts, IP40 Enclosure
Features
- 3 safety contacts, STOP 0
- 1 Signalling output
- Suitable for the signal processing of outputs with contact sensors
Documentation & Downloads
Specifications
Key Specifications
- Width
- 45 mm
- Depth
- 121 mm
Height100 mm
Electrical data - Relay outputs (auxiliary contacts)
- Switching capacity, maximum
- 24 VDC
Switching capacity, maximum2 A
Electrical data
- Frequency range
- 50 Hz | 60 Hz
- Ripple voltage
- 10 %
- Rated operating voltage
- 24 VDC
- Rated control voltage at AC 50 Hz, maximum
- 26.4 VAC
- Rated control voltage at AC 60 Hz, maximum
- 26.4 VAC
- Rated control voltage at DC, maximum
- 28.8 VDC
- Electrical power consumption
- 3.3 VA
- Note (Contact resistance)
- in new state
- Drop-out delay in case of emergency, typically
- 20 ms
- Pull-in delay at RESET, typically
- 20 ms
Operating voltage24 VAC -15 % / +10 % | 24 VDC -10 % / +20 %
Rated operating voltage24 VAC
Rated AC voltage for controls, 50 Hz, minimum20.4 VAC
Rated AC voltage for controls, 60 Hz, minimum20.4 VAC
Rated AC voltage for controls at DC minimum20.4 VDC
Electrical power consumption1.4 W
Contact resistance, maximum0.1 Ω
Drop-out delay in case of power failure, typically80 ms
Pull-in delay at automatic start, maximum, typically100 ms
Material of the contacts, electricalAgSn0. self-cleaning, positive drive
Note
- Note (General)
- Inductive loads (e.g. contactors, relays, etc.) are to be suppressed by means of a suitable circuit.
Mechanical data - Dimensions
- Width
- 45 mm
- Depth
- 121 mm
Height100 mm
Ambient conditions - Insulation values
- Rated impulse withstand voltage U
- 4 kV
- Degree of pollution
- 2
Overvoltage categoryIII
Electrical data - Digital Output
- Voltage, Utilisation category DC-12
- 24 VDC
Current, Utilisation category DC-120.1 A
General data - Features
- Stop-Category
- 0
- Wire breakage detection
- Yes
- Removable Terminals
- Yes
- Feedback circuit
- Yes
- Earth connection detection
- Yes
- Number of auxiliary contacts
- 1
- Number of normally closed (NC)
- 2
Electronic FuseYes
Cross-circuit detectionYes
Start inputYes
Reset edge detectionYes
Integral system diagnostics, statusYes
Number of LEDs4
Number of safety contacts3
General data
- Standards
- EN IEC 62061 | EN ISO 13849-1 | EN IEC 60947-5-1 | EN IEC 60947-5-3 | EN IEC 60947-5-5 | EN IEC 61508 | EN IEC 60204-1 | EN IEC 60947-1
- Enclosure material
- Glass-fibre reinforced thermoplastic, ventilated
Climatic stressEN 60068-2-78
Gross weight290 g

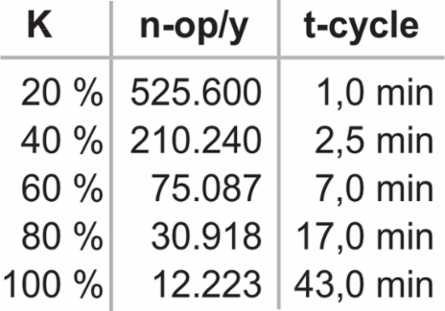

Safety classification
- Standards
- EN IEC 60947-5-1 | EN IEC 61508
- Category, Stop 0
- 4
- PFH value, Stop 0
- 2.00 x 10⁻⁸ /h
- Mission time
- 20 Year(s)
Performance Level, stop 0, up toe
Diagnostic Coverage (DC) Level, Stop 0≥ 99 %
Safety Integrity Level (SIL), Stop 0, suitable for applications in3
Common Cause Failure (CCF), minimum65
Wiring example
- Note (Wiring diagram)

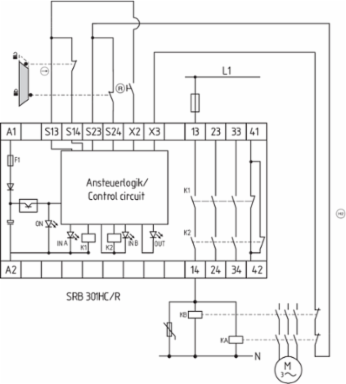

- The wiring diagram is shown with guard doors closed and in de-energised condition. | Relay outputs: Suitable for 2 channel control, for increase in capacity or number of contacts by means of contactors or relays with positive-guided contacts. | The control recognises cross-short, cable break and earth leakages in the monitoring circuit. | 2 channel control shown for a guard-door monitor with two contacts, of which at least one contact has positive break, with external reset button (R). | (H2) = Feedback circuit
Other data
- Note (applications)
- Guard system | Emergency-Stop button | Pull-wire emergency stop switches | Two-hand control panels | Safety mats
Ambient conditions
- Degree of protection of the enclosure
- IP40
- Degree of protection of clips or terminals
- IP20
- Storage and transport temperature, minimum
- -40 °C
- Resistance to vibrations
- 10 ... 55 Hz, Amplitude 0.35 mm
Degree of protection of the mounting spaceIP54
Ambient temperature-25 ... +60 °C
Storage and transport temperature, maximum+85 °C
Restistance to shock30 g / 11 ms
Mechanical data - Connection technique
- Termination
- rigid or flexible | Screw terminals M20 x 1.5
- Cable section, minimum
- 0.25 mm²
- Tightening torque of Clips
- 0.6 Nm
Terminal designationsIEC/EN 60947-1
Cable section, maximum2.5 mm²
Electrical data - Safe relay outputs
- Voltage, Utilisation category AC-15
- 230 VAC
- Voltage, Utilisation category DC-13
- 24 VDC
- Switching capacity, minimum
- 10 VDC
- Switching capacity, maximum
- 250 VAC
Current, Utilisation category AC-156 A
Current, Utilisation category DC-136 A
Switching capacity, minimum10 mA
Switching capacity, maximum8 A
Mechanical data
- Mechanical life, minimum
- 10,000,000 Operations
MountingSnaps onto standard DIN rail to EN 60715
Approvals - Standards
- Certificates
- TÜV | cULus | CCC | TILVA
Electrical data - Electromagnetic compatibility (EMC)
- EMC rating
- EMC-Directive
Electrical data - Digital inputs
- Conduction resistance, maximum
- 40 Ω
Status indication
- Indicated operating states
- Position relay K2 | Position relay K1
