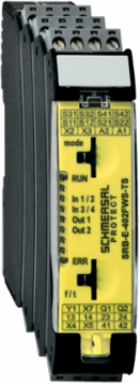

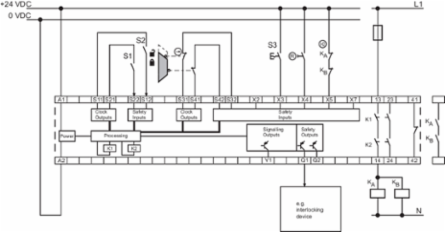

Schmersal 103014757 Multifunctional Safety Relay with 2 Safety Contacts, 24 VDC, IP40
- MPN: 103014757
- PPN: SCM-103014757
CAD
$846.14
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Multifunctional Safety Relay with 2 Safety Contacts, 24 VDC, IP40
Features
- 2-channel safety door monitoring
- 2 Safety contacts, 2 Safety Output
- Plug-in screw terminals with coding
- 2 Signalling outputs
- 1 Signalling output - failure massage dynamic
- Detects standstill using 1 or 2 impulse sensors
- additional standstill signal, e.g. PLC as second input channel
- 2-channel time monitoring
Documentation & Downloads
Specifications
Key Specifications
- Width
- 22.5 mm
- Depth
- 115 mm
Height98 mm
Electrical data - Relay outputs (auxiliary contacts)
- Switching capacity, maximum
- 24 VDC
Switching capacity, maximum1 A
Electrical data
- Operating voltage
- 24 VDC -20 % / +20 %
- Rated operating voltage
- 24 VDC
- Rated AC voltage for controls at DC minimum
- 19.2 VDC
- Electrical power consumption
- 3 W
- Note (Contact resistance)
- in new state
- Drop-out delay in case of emergency, typically
- 10 ms
- ON delay at automatic start
- Adjustable
- Switching frequency, maximum
- 0.3 Hz
Ripple voltage10 %
Operating current150 mA
Rated control voltage at DC, maximum28.8 VDC
Contact resistance, maximum0.1 Ω
Drop-out delay in case of power failure, typically10 ms
Pull-in delay at automatic start, maximum, typically150 ms
Pull-in delay at RESET, typically150 ms
Material of the contacts, electricalAg-Ni, self-cleaning, positive drive
Mechanical data - Dimensions
- Width
- 22.5 mm
- Depth
- 115 mm
Height98 mm
Ambient conditions - Insulation values
- Rated insulation voltage U
- 250 V / 50 V
- Rated impulse withstand voltage U
- 0.8 kV
- Degree of pollution
- 2
Rated impulse withstand voltage U4 kV
Overvoltage categoryIII
Electrical data - Digital Output
- Voltage, Utilisation category DC-12
- 24 VDC
Current, Utilisation category DC-120.1 A
General data - Features
- Stop-Category
- 0
- Wire breakage detection
- Yes
- Start input
- Yes
- Automatic reset function
- Yes
- Earth connection detection
- Yes
- Number of auxiliary contacts
- 1
- Number of inputs for NO
- 2
- Number of safety contacts
- 2
- Number of signalling outputs
- 1
Electronic FuseYes
Cross-circuit detectionYes
Feedback circuitYes
Reset edge detectionYes
Integral system diagnostics, statusYes
Number of inputs for NC4
Number of LEDs6
Number of fail-safe digital outputs2
General data
- Standards
- EN IEC 62061 | EN ISO 13849-1 | EN IEC 60947-5-1 | EN IEC 60947-5-3 | EN IEC 60947-5-5 | EN IEC 61508 | EN IEC 60204-1 | EN IEC 60947-1
- Enclosure material
- Glass-fibre reinforced thermoplastic, ventilated
Climatic stressEN 60068-2-78
Gross weight190 g
Safety classification
- Standards
- EN ISO 13849-1 | EN IEC 62061 | EN IEC 61508
- Category
- 4
- PFH value
- 1.25 x 10⁻⁸ /h
- Safety Integrity Level (SIL), suitable for applications in
- 3
- Common Cause Failure (CCF), minimum
- 65
- PFD value
- 2.42 x 10⁻⁵
Performance Level, up toe
Diagnostic Coverage (DC) Level> 94 %
PFD value5.30 x 10⁻⁵
Mission time20 Year(s)
PFH value2.66 x 10⁻⁹ /h
Electrical data - Safety digital outputs
- Voltage drop U
- 0.5 V
- Voltage, Utilisation category DC-13
- 24 VDC
Leakage current I1 mA
Current, Utilisation category DC-132 A
Other data
- Note (applications)
- safe standstill monitoring | Fail-safe delay timer | guard door monitoring
Ambient conditions
- Degree of protection of the enclosure
- IP40
- Degree of protection of clips or terminals
- IP20
- Storage and transport temperature, minimum
- -40 °C
- Resistance to vibrations
- 10 ... 55 Hz, Amplitude 0.35 mm
Degree of protection of the mounting spaceIP54
Ambient temperature-25 ... +60 °C
Storage and transport temperature, maximum+85 °C
Restistance to shock30 g / 11 ms
Mechanical data - Connection technique
- Termination
- rigid or flexible | Screw connection, plug-in
- Cable section, minimum
- 0.25 mm²
- Tightening torque of Clips
- 0.5 Nm
Terminal designationsIEC 60947-1
Cable section, maximum2.5 mm²
Electrical data - Safe relay outputs
- Voltage, Utilisation category AC-15
- 230 VAC
- Voltage, Utilisation category DC-13
- 24 VDC
- Switching capacity, minimum
- 10 VDC
- Switching capacity, maximum
- 250 VAC
Current, Utilisation category AC-154 A
Current, Utilisation category DC-134 A
Switching capacity, minimum10 mA
Switching capacity, maximum6 A
Mechanical data
- Mechanical life, minimum
- 10,000,000 Operations
MountingSnaps onto standard DIN rail to EN 60715
Approvals - Standards
- Certificates
- TÜV | cULus | CCC
Electrical data - Electromagnetic compatibility (EMC)
- EMC rating
- EMC-Directive
Electrical data - Digital inputs
- Conduction resistance, maximum
- 40 Ω
Status indication
- Indicated operating states
- Internal operating voltage U | Baustein-Status | Fault codes
