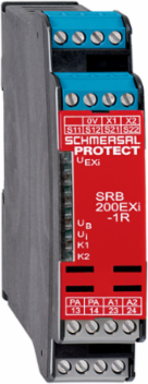

Schmersal 103037575 SRB200EXi Safety Relay Module, 2 Safety Contacts, 24 VDC

  • MPN: 103037575
  • PPN: SCM-103037575

CAD

$1341.42

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

SRB200EXi Safety Relay Module, 2 Safety Contacts, 24 VDC

Features

  • Reset with trailing edge
  • 2 safety contacts
  • Suitable for signal processing of emergency stop control devices, interlocking equipment, etc

Documentation & Downloads

Specifications

Key Specifications

Width
22.5 mm
Depth
121 mm
Height100 mm

Explosion protection

Explosion protection: regulations
EN IEC 60079-0 | EN IEC 60079-11 | EN IEC 60079-15
Explosion protection category
3G
Explosion protection zones2
Explosion protection designationII 3 G Ex nA nC IIC T5 Gc (Installation SRB, in Zone 2) | II (2) G [Ex ib Gb] IIC | II (2) D [Ex ib Db] IIIC

Electrical data

Operating voltage
24 VDC -10 % / +20 %
Current consumption
57 mA
Rated AC voltage for controls at DC minimum
20.4 VDC
Utilisation category AC-15
230 VAC
Utilisation category DC-13
24 VDC
Electrical power consumption
3 W
Note (Contact resistance)
in new state
Drop-out delay in case of "emergency stop", maximum
20 ms
Pull-in delay at RESET, typically
20 ms
Ripple voltage10 %
Rated operating voltage24 VDC
Rated control voltage at DC, maximum28.8 VDC
Utilisation category AC-152 A
Utilisation category DC-132 A
Contact resistance, maximum0.1 Ω
Drop-out delay in case of power failure, typically20 ms
Pull-in delay at automatic start, maximum, typically300 ms
Material of the contacts, electricalAgSn0. self-cleaning, positive drive

Note

Note (General)
Inductive loads (e.g. contactors, relays, etc.) are to be suppressed by means of a suitable circuit.

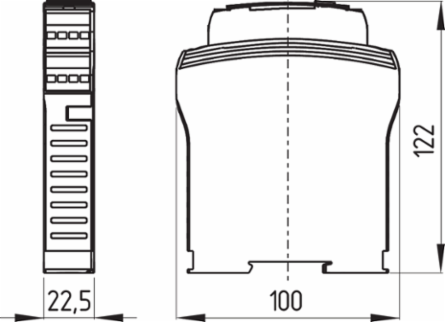

Mechanical data - Dimensions

Width
22.5 mm
Depth
121 mm
Height100 mm

Ambient conditions - Insulation values

Rated impulse withstand voltage U
4 kV
Degree of pollution
2
Overvoltage categoryIII

General data - Features

Stop-Category
0
Cross-circuit detection
Yes
Integral system diagnostics, status
Yes
Number of normally closed (NC)
2
Wire breakage detectionYes
Earth connection detectionYes
Number of LEDs5
Number of safety contacts2

General data

Climatic stress
EN 60068-2-78
Gross weight
264 g
Enclosure materialGlass-fibre reinforced thermoplastic, ventilated

Safety classification

Standards
EN ISO 13849-1 | EN IEC 60947-5-1 | EN IEC 61508
Category, Stop 0
4
PFH value, Stop 0
2.00 x 10⁻⁸ /h

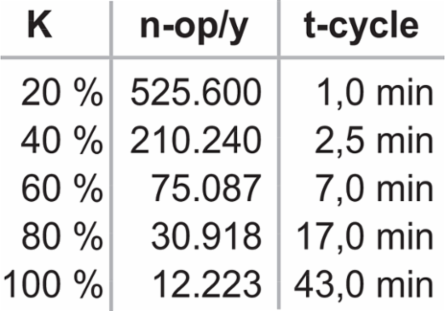

Mission time
15 Year(s)
Performance Level, stop 0, up toe
Diagnostic Coverage (DC) Level, Stop 0≥ 99 %
Safety Integrity Level (SIL), Stop 0, suitable for applications in3
Common Cause Failure (CCF), minimum65

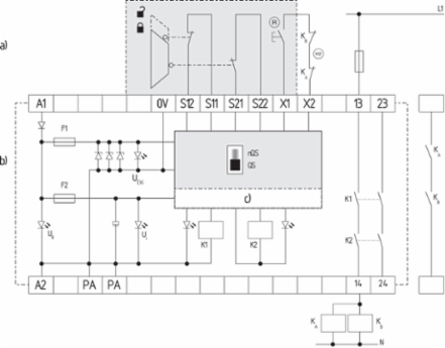

Wiring example

Note (Wiring diagram)
The wiring diagram is shown with guard doors closed and in de-energised condition. | Monitoring 1 guard door(s), each with a magnetic safety sensor of the BNS range | If only one external relay or contactor is used to switch the load, the system can be classified in Control Category 3 to ISO 13849-1, if exclusion of the fault “Failure of the external contactor” can be substantiated and is documented, e.g. by using a reliable down-rated contactor. A second contactor leads to an increase in the level of security by redundant switching to switch the load off. | To secure a guard door up to PL e and Category 4 | The feedback circuit monitors the position of the contactors KA and KB. | Automatic start: The automatic start is programmed by connecting the feedback circuit to the terminals X1/X2. If the feedback circuit is not required, establish a bridge.

Other data

Note (applications)
Safety sensor | Guard system | Emergency-Stop button | Pull-wire emergency stop switches

Ambient conditions

Degree of protection of the enclosure
IP40
Degree of protection of clips or terminals
IP20
Storage and transport temperature, minimum
-40 °C
Resistance to vibrations
10 ... 55 Hz, Amplitude 0.35 mm
Degree of protection of the mounting spaceIP54
Ambient temperature-25 ... +60 °C
Storage and transport temperature, maximum+85 °C
Restistance to shock30 g / 11 ms

Mechanical data - Connection technique

Terminal designations
IEC/EN 60947-1
Cable section, maximum
2.5 mm²
Cable section, minimum0.25 mm²
Tightening torque of Clips0.6 Nm

Mechanical data

Mechanical life, minimum
10,000,000 Operations
MountingSnaps onto standard DIN rail to EN 60715

Electrical data - Electromagnetic compatibility (EMC)

EMC rating
EMC-Directive

Electrical data - Digital inputs

Conduction resistance, maximum
30 Ω
