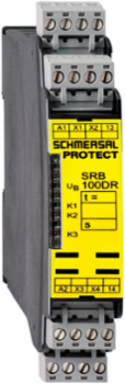

Schmersal 101186279 Safety Relay Module with 1 Safety Contact, 24 VDC, IP54, 100 mm Height
- MPN: 101186279
- PPN: SCM-101186279
CAD
$699.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Safety Relay Module with 1 Safety Contact, 24 VDC, IP54, 100 mm Height
Features
- Safety relay module for double reset
- Suitable for signal processing of potential-free outputs, e.g. command devices
- 1 safety contact, STOP 0
Documentation & Downloads
Specifications
Key Specifications
- Width
- 22.5 mm
- Depth
- 121 mm
Height100 mm
Electrical data - Relay outputs (auxiliary contacts)
- Switching capacity, maximum
- 24 VDC
Switching capacity, maximum2 A
Electrical data
- Frequency range
- 50 Hz | 60 Hz
- Ripple voltage
- 10 %
- Rated operating voltage
- 24 VDC
- Rated control voltage at AC 50 Hz, maximum
- 26.4 VAC
- Rated control voltage at AC 60 Hz, maximum
- 26.4 VAC
- Rated control voltage at DC, maximum
- 28.8 VDC
- Electrical power consumption
- 6 VA
- Note (Contact resistance)
- in new state
- Drop-out delay in case of emergency, typically
- 20 ms
- Pull-in delay at RESET, typically
- 20 ms
Operating voltage24 VAC -15 % / +10 % | 24 VDC -15 % / +20 %
Rated operating voltage24 VAC
Rated AC voltage for controls, 50 Hz, minimum20.4 VAC
Rated AC voltage for controls, 60 Hz, minimum20.4 VAC
Rated AC voltage for controls at DC minimum20.4 VDC
Electrical power consumption3.2 W
Contact resistance, maximum0.1 Ω
Drop-out delay in case of power failure, typically80 ms
Pull-in delay at automatic start, maximum, typically100 ms
Material of the contacts, electricalAg-Ni, self-cleaning, positive drive
Note
- Note (General)
- Inductive loads (e.g. contactors, relays, etc.) are to be suppressed by means of a suitable circuit.
Mechanical data - Dimensions
- Width
- 22.5 mm
- Depth
- 121 mm
Height100 mm
Ambient conditions - Insulation values
- Rated impulse withstand voltage U
- 4 kV
- Degree of pollution
- 2
Overvoltage categoryIII
General data - Features
- Electronic Fuse
- Yes
- Start input
- Yes
- Earth connection detection
- Yes
- Number of LEDs
- 4
- Number of safety contacts
- 1
Wire breakage detectionYes
Reset after disconnection of supply voltageYes
Integral system diagnostics, statusYes
Number of normally closed (NC)2
General data
- Standards
- EN IEC 62061 | EN ISO 13849-1 | EN IEC 60947-5-1 | EN IEC 60947-5-3 | EN IEC 60947-5-5 | EN IEC 61508 | EN IEC 60204-1 | EN IEC 60947-1
- Enclosure material
- Glass-fibre reinforced thermoplastic, ventilated
Climatic stressEN 60068-2-78
Gross weight250 g

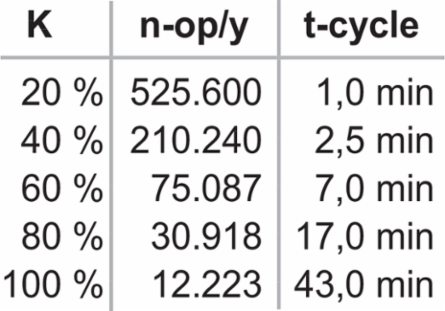

Safety classification
- Standards
- EN IEC 60947-5-1 | EN IEC 61508
- Mission time
- 20 Year(s)
PFH value, Stop 02.00 x 10⁻⁸ /h

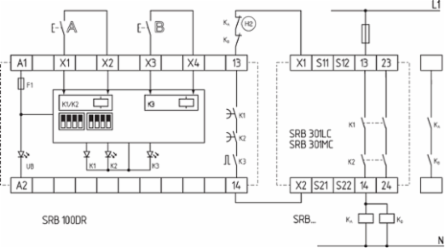

Wiring example
- Note (Wiring diagram)
- The wiring diagram is shown with guard doors closed and in de-energised condition. | Applications: #Picture#Bilddata/Sonstige/_quitz01.eps#/Picture# safety relay module for double reset | Start configuration: 2 time-dependent reset/on switches 1st and 2nd monitoring time between the 1st and 2nd reset button from 3 … 30 seconds adjustable through DIP switches | The monitoring time is set through DIP switches located below the cover of the enclosure front. (Factory setting: 3 seconds) | Actuator configuration: 1-channel control (output impulse approx. 200 ms) of the reset input of a downstream safety relay module | Edge detection: After the device is reset, the trailing edge is evaluated, so that errors, e.g. welded contacts or manipulations cannot lead to dangerous situations. | (H2) = Feedback circuit
Ambient conditions
- Degree of protection of the enclosure
- IP40
- Degree of protection of clips or terminals
- IP20
- Storage and transport temperature, minimum
- -40 °C
- Resistance to vibrations
- 10...55 Hz, Amplitude 0.35 mm, ± 15 %
Degree of protection of the mounting spaceIP54
Ambient temperature-25 ... +60 °C
Storage and transport temperature, maximum+85 °C
Restistance to shock30 g / 11 ms
Mechanical data - Connection technique
- Termination
- rigid or flexible | Screw terminals M20 x 1.5
- Cable section, minimum
- 0.25 mm²
- Tightening torque of Clips
- 0.6 Nm
Terminal designationsIEC/EN 60947-1
Cable section, maximum2.5 mm²
Electrical data - Safe relay outputs
- Voltage, Utilisation category AC-15
- 230 VAC
- Voltage, Utilisation category DC-13
- 24 VDC
- Switching capacity, minimum
- 10 VDC
- Switching capacity, maximum
- 250 VAC
Current, Utilisation category AC-156 A
Current, Utilisation category DC-136 A
Switching capacity, minimum10 mA
Switching capacity, maximum8 A
Mechanical data
- Mechanical life, minimum
- 10,000,000 Operations
MountingSnaps onto standard DIN rail to EN 60715
Electrical data - Electromagnetic compatibility (EMC)
- EMC rating
- EMC-Directive
Electrical data - Digital inputs
- Conduction resistance, maximum
- 40 Ω
Status indication
- Indicated operating states
- Position relay K2 | Position relay K1 | Position relay K3
