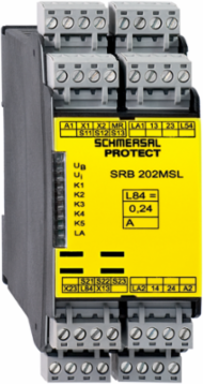

Schmersal 101181998 SRB202MSL Safety Relay with 2 Safety Contacts, 45 mm Width, 121 mm Depth
- MPN: 101181998
- PPN: SCM-101181998
CAD
$991.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
SRB202MSL Safety Relay with 2 Safety Contacts, 45 mm Width, 121 mm Depth
Features
- Muting signalling device monitoring
- 2 safety contacts, STOP 0
- 2 Signalling outputs
Documentation & Downloads
Specifications
Key Specifications
- Width
- 45 mm
- Depth
- 121 mm
Height100 mm
Electrical data
- Frequency range
- 50 Hz | 60 Hz
- Ripple voltage
- 10 %
- Rated AC voltage for controls at DC minimum
- 20.4 VDC
- Utilisation category DC-13
- 24 VDC
- Electrical power consumption
- 5.6 W
- Note (Contact resistance)
- in new state
- Drop-out delay in case of emergency, typically
- 17 ms
- Pull-in delay at automatic start, maximum, typically
- 200 ms
Operating voltage24 VDC -10 % / +20 %
Rated operating voltage24 VDC
Rated control voltage at DC, maximum28.8 VDC
Utilisation category DC-132 A
Contact resistance, maximum0.1 Ω
Drop-out delay in case of power failure, typically60 ms
Drop-out delay in case of "emergency stop", maximum20 ms
Material of the contacts, electricalAgSn0, Ag-Ni, self-cleaning, positive drive
Note
- Note (General)
- Inductive loads (e.g. contactors, relays, etc.) are to be suppressed by means of a suitable circuit.
Mechanical data - Dimensions
- Width
- 45 mm
- Depth
- 121 mm
Height100 mm
Ambient conditions - Insulation values
- Rated impulse withstand voltage U
- 4 kV
- Degree of pollution
- 2
Overvoltage categoryIII
General data - Features
- Stop-Category
- 0
- Wire breakage detection
- Yes
- Removable Terminals
- Yes
- Automatic reset function
- Yes
- Earth connection detection
- Yes
- Number of auxiliary contacts
- 2
- Number of normally closed (NC)
- 2
- Number of signalling outputs
- 2
Electronic FuseYes
Cross-circuit detectionYes
Feedback circuitYes
Reset after disconnection of supply voltageYes
Integral system diagnostics, statusYes
Number of LEDs8
Number of safety contacts2
General data
- Standards
- EN IEC 62061 | EN ISO 13849-1 | EN IEC 60947-5-1 | EN IEC 60947-5-3 | EN IEC 60947-5-5 | EN IEC 61508 | EN IEC 60204-1 | EN IEC 60947-1
- Enclosure material
- Glass-fibre reinforced thermoplastic, ventilated
Climatic stressEN 60068-2-78
Gross weight400 g
Safety classification
- Standards
- EN IEC 60947-5-1 | EN IEC 61508
- Category, Stop 0
- 4
- PFH value, Stop 0
- 2.00 x 10⁻⁸ /h
- Mission time
- 20 Year(s)
Performance Level, stop 0, up toe
Diagnostic Coverage (DC) Level, Stop 0≥ 99 %
Safety Integrity Level (SIL), Stop 0, suitable for applications in3
Common Cause Failure (CCF), minimum65
Wiring example
- Note (Wiring diagram)

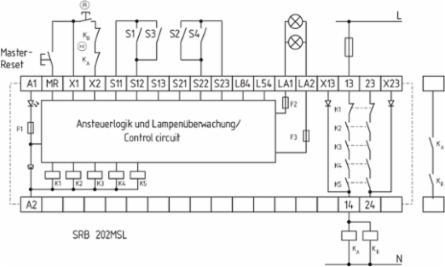

- Relay outputs: Suitable for 2 channel control, for increase in capacity or number of contacts by means of contactors or relays with positive-guided contacts. | The control recognises cross-short, cable break and earth leakages in the monitoring circuit. | The example shows a 2-channel control of 2 muting sensors and an external master reset button. | The wiring diagram is shown with non-actuated muting sensors and in de-energised condition. | (H2) = Feedback circuit | F1 = Electronic fuse
Other data
- Note (applications)
- Muting function
Ambient conditions
- Degree of protection of the enclosure
- IP40
- Degree of protection of clips or terminals
- IP20
- Storage and transport temperature, minimum
- -40 °C
- Resistance to vibrations
- 10...55 Hz, Amplitude 0.35 mm, ± 15 %
Degree of protection of the mounting spaceIP54
Ambient temperature-25 ... +45 °C
Storage and transport temperature, maximum+85 °C
Restistance to shock30 g / 11 ms
Mechanical data - Connection technique
- Termination
- rigid or flexible | Screw terminals M20 x 1.5
- Cable section, minimum
- 0.25 mm²
- Tightening torque of Clips
- 0.6 Nm
Terminal designationsIEC/EN 60947-1
Cable section, maximum2.5 mm²
Mechanical data

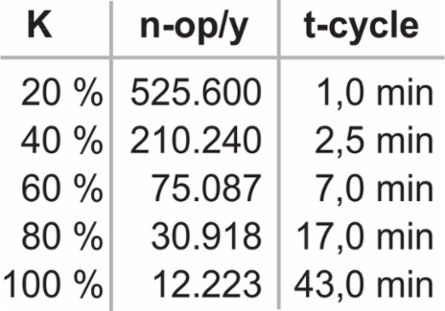

- Mechanical life, minimum
- 10,000,000 Operations
MountingSnaps onto standard DIN rail to EN 60715
Electrical data - Electromagnetic compatibility (EMC)
- EMC rating
- EMC-Directive
Electrical data - Digital inputs
- Conduction resistance, maximum
- 40 Ω
Status indication
- Indicated operating states
- Position relay K2 | Position relay K1 | Internal operating voltage U | Position relay K3 | Position relay K5 | Position of the muting signalling device LA
