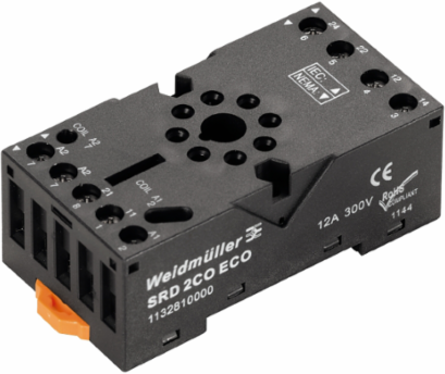

Weidmuller 1132810000 D-Series Relay Module, 2 CO Contacts, 12 A, Screw Connection, IP20
Weidmuller 1132810000 D-Series Relay Module, 2 CO Contacts, 12 A, Screw Connection, IP20
- MPN: 1132810000
- PPN: WDM-1132810000
Spec sheet
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$7.73/ EA
Description
D-SERIES DRR, Relay bases, Number of contacts: 2 CO contact, Continuous current: 12 A, Screw connection
Specifications
General Data
- Rail
- TS 35
- UL 94 flammability rating
- V-0
Colourblack
Approvals
- Approvals
- CE, cURus
- UL File Number Search
- E355547
ROHSConform

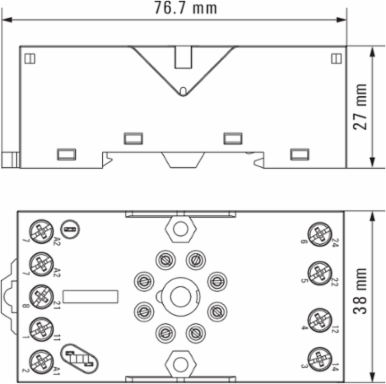

Dimensions And Weights
- Width
- 38 mm
- Height
- 76.7 mm
- Depth
- 27 mm
- Net weight
- 50 g
Width (inches)1.496 inch
Height (inches)3.02 inch
Depth (inches)1.063 inch
Connection Data
- Wire connection method
- Screw connection
- Tightening torque, min.
- 0.5 Nm
- Clamping range, min.
- 0.5 mm²
- Wire cross-section, solid, min.
- 0.5 mm²
- Wire connection cross-section, finely stranded, min.
- 0.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
- 0.5 mm²
- Conductor cross-section, flexible, AEH (DIN 46228-1), min.
- 0.5 mm²
- Wire connection cross section, finely stranded, two clampable wires, min.
- 0.5 mm²
- Blade size
- size PH1
Stripping length, rated connection7 mm
Tightening torque, max.1 Nm
Clamping range, max.2.5 mm²
Wire cross-section, solid, max.2.5 mm²
Wire connection cross section, finely stranded, max.2.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.2.5 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), max.2.5 mm²
Wire cross-section, finely stranded, two clampable wires, max.1 mm²
Rated Data Ul
- Certificate No. (cURus)
- E355547
Contact Data
- Contact type
- 2 CO contact
Classifications
- ETIM 6.0
- EC001456
- eClass 9.0
- 27-37-16-03
- eClass 10.0
- 27-37-16-03
ETIM 7.0EC001456
eClass 9.127-37-16-03
Output
- Rated switching voltage
- 250 V AC
- Continuous current
- 12 A
Max. switching voltage, AC300 V
Product Information
- Product information
- For this socket, a cross connection is not available.For this socket, markers are not available.
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Insulation Coordination
- Surge voltage category
- III
- Protection degree
- IP20
- Creepage and clearance distance input – output
- ≥ 4 mm
- Impulse withstand voltage
- 4.8 kV (1.2/50 µs)
Pollution severity2
Dielectric strength, Input/Output2.5 kVeff / 1 Min.
Dielectric strength of neighbouring contacts2.21 kVeff/ 1 min
Temperatures
- Humidity
- 35...85 % rel. humidity, no condensation
- Operating temperature, min.
- -40 °C
- Storage temperature, min.
- -40 °C
- Storage temperature
- -40 °C...85 °C
Operating temperature, max.65 °C
Storage temperature, max.85 °C
Operating temperature-40 °C...65 °C
Further Details Of Approvals / Standards
- Standards
- EN 60664-1:2007, EN 61000-6-2:2005, EN 61000-6-4:2007 + A1:2011, UL 508
Certificate No. (cURus)E355547
