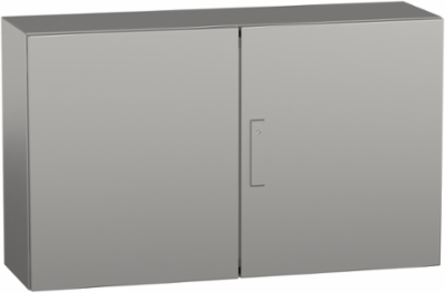

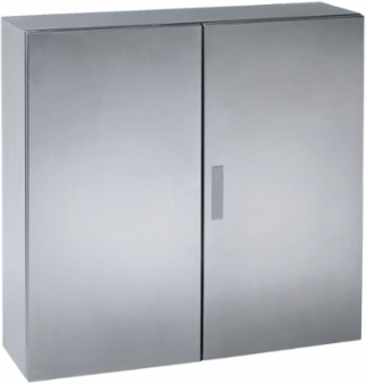

Schneider Electric NSYS3X601030 Wall mounted enclosure, PanelSeT S3X, stainless steel 304L, double plain door, 600x1000x300mm, IP55
- MPN: NSYS3X601030
- PPN: SCH-NSYS3X601030
CAD
$2985.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Designed for durability and functionality, the Wall Mounted Enclosure from Schneider Electric is an ideal solution for a variety of applications. Crafted from high-quality stainless steel 304L, this enclosure features a robust double plain door with a three-point lock system, ensuring secure access while maintaining a sleek aesthetic. With dimensions of 600x1000x300 mm and an IP55 rating, it provides excellent protection against dust and water, making it suitable for both indoor and outdoor installations. The reversible door design and IK10 impact resistance further enhance its versatility, allowing for easy installation and reliable performance in challenging environments.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Bulgaria, Brazil, France, United States
Physical Attributes
- Enclosure Nominal Height
- 600 mm
Enclosure Nominal Width1000 mm
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Body Type
- single piece body, cross-shaped structure, gutter shaped front rail
- Door Type
- Solid, Solid
- Certificate Agency
- CAN/CSA 22, UL 508 type A
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 82 kg CO2 eq., 81.63847240873505
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 317 kg CO2 eq., 317.38490868957336
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 3
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Door Opening Side
- reversible 120 °)
- Lock Type
- 3 points lock, 3 mm double-bar
- Mounting Plate Description
- without mounting plate
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Or Component Type
- compact enclosure
- Removable Parts
- door by hinges
- Software Version
- v6.2.3
- Sustainable Packaging
- No
- Type Of Gland Plate
- without gland plate
- Pep Code
- ENVPEP2109018EN
- Pep Verification Date
- 2024-11-13
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Package Weight(Lbs)
- 31.100 kg
- Warranty (In Months)
- 18
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Device Composition1 body1 lock door2 perforated vertical profile drilled door, 2 doors
Environmental Characteristicspecific hygiene, corrosive
Carbon Footprint Of The Distribution Phase [A4]61.74353546037691, 62 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]1.543742347719296, 2 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]kg CO2 eq., 0
Local Publishable Date2025-09-16
Stocking FlagY
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1916
China Rohs In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier3
Function OptionStandard
Device Applicationmulti-purpose
Energy Efficiency OptimizedFalse
Materialbody and door stainless steel 304Llock zamakhinge stainless steel
Number Of Doorsfront face 2
Product NameSpacial S3X
RangeSpacial
ReturnabilityNo
Surface Finishbody and door Scotch-Brite® brushedlock chromium plated
Total Lifecycle Carbon Footprint462 kg CO2 eq.
Locking Description3 points lock, 3 mm double-bar
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionProtect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure having the following dimensions H x L x D, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Bulgaria, BG
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; Europe, EU-27
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code9403200090
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 462.31065890640457
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2109018EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2109018EN
Ip Degree Of ProtectionIP55 IEC 60529
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2024-11-13
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- compact enclosure
ETIM
- ETIM 8
- EC000261
ETIM 9EC000261
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
