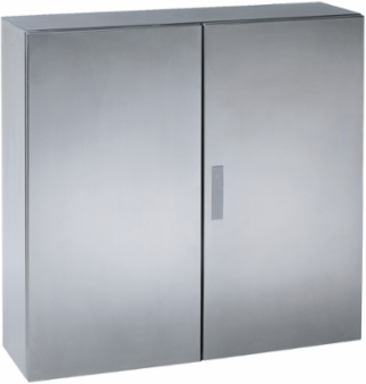

Schneider Electric NSYS3X101030 Spacial S3X Wall Mounted Enclosure, 1000x1000x300mm, IP55, Stainless Steel 304L

  • MPN: NSYS3X101030
  • PPN: SCH-NSYS3X101030
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $3626.00

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    The Schneider Electric NSYS3X101030 Spacial S3X Wall Mounted Enclosure is expertly designed for robust protection in a variety of industrial and commercial settings. Crafted from high-quality stainless steel 304L, this enclosure ensures longevity and resilience against environmental factors, achieving an IP55 rating for dust and water resistance. With dimensions of 1000x1000x300mm, it provides ample storage space for your automation, control, and IT communication systems. This versatile solution not only safeguards critical equipment but also complements the modern infrastructure of data centers and control rooms, making it an essential choice for professionals seeking reliability and durability in enclosure solutions.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Bulgaria, Brazil, Spain, France, United States

    Physical Attributes

    Enclosure Nominal Height
    1000 mm
    Enclosure Nominal Width1000 mm

    Important Information Attributes

    Persona Type Ids
    LC, OM, OM8, PB, SI
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Body Type
    single piece body, cross-shaped structure, gutter shaped front rail
    Door Type
    Solid, Solid
    Certificate Agency
    CAN/CSA 22, UL 508 type A
    Carbon Footprint Of The End-of-life Phase [C1 To C4]
    104 kg CO2 eq., 103.65758267754775
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]
    215 kg CO2 eq., 214.8342705650823
    Local Data Status
    Publishable
    Return Indicator
    N
    Stock Policy
    2
    Scope Perimeter
    At least in Europe
    Reach Full Compliance Status
    Free of Substances of Very High Concern above the threshold
    Reach Compliance Directive
    Free of Substances of Very High Concern above the threshold
    Rohs Eur Status
    Compliant
    Rohs Eur Full Compliance Status
    Compliant
    China Rohs Label
    1
    Without Single Use Plastic
    No
    Tier Id
    3
    Function Option Id
    STANDARD
    Product Kit Identifier
    N
    Door Opening Side
    reversible 120 °)
    Lock Type
    3 points lock, 3 mm double-bar
    Mounting Plate Description
    without mounting plate
    Product Availability
    Non-Stock - Not normally stocked in distribution facility
    Product Or Component Type
    compact enclosure
    Removable Parts
    door by hinges
    Software Version
    v6.1
    Sustainable Packaging
    No
    Type Of Gland Plate
    without gland plate
    Pep Code
    ENVPEP2109018EN
    Pep Verification Date
    2024-08-01
    Psr Version
    PSR-0005-ed3.1-EN-2023 12 08
    Data Source
    extrapolated product
    Functional-unit Quantity
    1
    Reference Lifetime In Y
    20
    Energy Model - Installation [A5]
    Electricity Mix; Low voltage; 2018; Europe, EU-27
    Energy Model - End Of Life [C1-c4]
    Electricity Mix; Low voltage; 2018; Europe, EU-27
    Package Weight(Lbs)
    44.000 kg
    Take-back
    No
    Customs Code
    9403200090
    Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
    Market SegmentationCommercial, Industrial
    Device Composition1 body2 door1 lock door, 1 reinforcement frame drilled door
    Environmental Characteristicspecific hygiene, corrosive
    Carbon Footprint Of The Distribution Phase [A4]87.35419807898985, 87 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]8.668749973129902, 9 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]kg CO2 eq., 0
    Local Publishable Date2025-09-16
    Stocking FlagY
    Weee ScopeOut
    Eoli Availability DisplayNo need of specific recycling operations
    Reach Full Compliance Status IdNOT_CONTAINING_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1916
    China Rohs In ScopeNo
    With Recycled CardboardNo
    Product Contributes To Saved And Avoided EmissionsNo
    Tier3
    Function OptionStandard
    Device Applicationmulti-purpose
    Energy Efficiency OptimizedFalse
    Materialbody and door stainless steel 304Llock zamakhinge stainless steel
    Number Of Doorsfront face 2
    Product NameSpacial S3X
    RangeSpacial
    ReturnabilityNo
    Surface Finishbody and door Scotch-Brite® brushedlock chromium plated
    Total Lifecycle Carbon Footprint415 kg CO2 eq.
    Locking Description3 points lock, 3 mm double-bar
    Database Version2023-02
    Pcr VersionPCR-4-ed4-EN-2021 09 06
    Type Of Verification For The PepIndependent external review
    Functional-unit DescriptionProtect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
    Functional-unit UnitUnit
    Energy Model - Manufacturing [A1-a3]France, FR
    Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; Europe, EU-27
    Nbr. Of Units In Pkg.1
    Silicone-freeYes
    Warranty (In Months)18

    Environment Attributes Main

    China Rohs Regulation
    Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
    Reach Free Shvc
    Yes
    Toxic Heavy Metal Free
    Yes
    Silicon Free
    Yes
    Environmental Disclosure
    ENVPEP2109018EN
    Ip Degree Of Protection
    IP55 IEC 60529
    Packaging Without Single Use Plastic
    No
    Reach Regulation
    Free of Substances of Very High Concern above the threshold
    Pep Verification Date
    2024-08-01
    Psr Version
    PSR-0005-ed3.1-EN-2023 12 08
    Take BackNo
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Carbon Footprint414.51480129474976
    Eu Rohs DirectiveCompliant
    Packaging Made With Recycled CardboardNo
    Reach Free Of SvhcYes
    Pep CodeENVPEP2109018EN
    Pcr VersionPCR-4-ed4-EN-2021 09 06
    Type Of Verification For The PepIndependent external review

    General Attributes

    Product Or Component Type
    compact enclosure

    ETIM

    ETIM 8
    EC000261
    ETIM 9EC000261

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months
