Spacial S3X Wall Mounted Enclosure, Stainless Steel 316L, 1200x1000x300 mm, IP55
Spacial S3X Wall Mounted Enclosure, Stainless Steel 316L, 1200x1000x300 mm, IP55
Spacial S3X Wall Mounted Enclosure, Stainless Steel 316L, 1200x1000x300 mm, IP55
Spacial S3X Wall Mounted Enclosure, Stainless Steel 316L, 1200x1000x300 mm, IP55
Schneider Electric

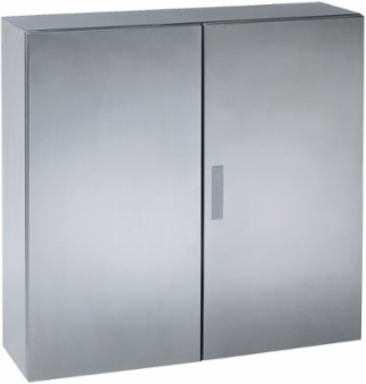

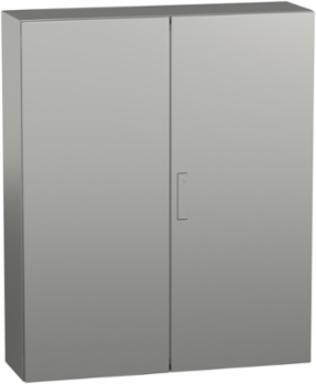

Schneider Electric NSYS3X121030H Spacial S3X Wall Mounted Enclosure, Stainless Steel 316L, 1200x1000x300 mm, IP55

  • MPN: NSYS3X121030H
  • PPN: SCH-NSYS3X121030H
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    Crafted by Schneider Electric, this wall-mounted enclosure exemplifies durability and protection in demanding environments. Made from 316L stainless steel, it ensures robust resistance against corrosion and environmental hazards, making it ideal for automation, control, and data communication applications. With dimensions of 1200x1000x300 mm and an IP55 rating, it provides effective safeguarding for vital equipment against dust and water ingress. This enclosure is an essential asset for maintaining the integrity of your systems, all while blending seamlessly into various industrial settings.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Bulgaria, Brazil, Spain, France, United States

    Physical Attributes

    Enclosure Nominal Height
    1200 mm
    Enclosure Nominal Width1000 mm

    Important Information Attributes

    Persona Type Ids
    LC, OM, OM8, PB, SI
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Body Type
    single piece body, cross-shaped structure, gutter shaped front rail
    Door Type
    Solid, Solid
    Certificate Agency
    UL 508 type A, CAN/CSA 22
    Carbon Footprint Of The End-of-life Phase [C1 To C4]
    135 kg CO2 eq., 135.451613385554
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]
    527 kg CO2 eq., 526.5936105589063
    Local Data Status
    Publishable
    Return Indicator
    N
    Stock Policy
    2
    Scope Perimeter
    At least in Europe
    Reach Full Compliance Status
    Free of Substances of Very High Concern above the threshold
    Reach Compliance Directive
    Free of Substances of Very High Concern above the threshold
    Rohs Eur Status
    Compliant
    Rohs Eur Full Compliance Status
    Compliant
    China Rohs Label
    1
    Without Single Use Plastic
    No
    Tier Id
    3
    Function Option Id
    STANDARD
    Product Kit Identifier
    N
    Door Opening Side
    reversible 120 °)
    Lock Type
    3 points lock, 3 mm double-bar
    Mounting Plate Description
    without mounting plate
    Product Availability
    Non-Stock - Not normally stocked in distribution facility
    Product Or Component Type
    compact enclosure
    Removable Parts
    door by hinges
    Software Version
    v6.2.3
    Sustainable Packaging
    No
    Type Of Gland Plate
    without gland plate
    Pep Code
    ENVPEP2109018EN
    Pep Verification Date
    2024-11-13
    Psr Version
    PSR-0005-ed3.1-EN-2023 12 08
    Data Source
    extrapolated product
    Functional-unit Quantity
    1
    Reference Lifetime In Y
    20
    Energy Model - Installation [A5]
    Electricity Mix; Low voltage; 2018; Europe, EU-27
    Energy Model - End Of Life [C1-c4]
    Electricity Mix; Low voltage; 2018; Europe, EU-27
    Package Weight(Lbs)
    51.600 kg
    Take-back
    No
    Customs Code
    9403200090
    Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
    Market SegmentationCommercial, Industrial
    Device Composition1 body2 door1 lock door, 1 reinforcement frame drilled door
    Environmental Characteristicspecific hygiene, corrosive
    Carbon Footprint Of The Distribution Phase [A4]102.44265047445172, 102 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]2.561321708756131, 3 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]kg CO2 eq., 0
    Local Publishable Date2025-09-16
    Stocking FlagY
    Weee ScopeOut
    Eoli Availability DisplayNo need of specific recycling operations
    Reach Full Compliance Status IdNOT_CONTAINING_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1916
    China Rohs In ScopeNo
    With Recycled CardboardNo
    Product Contributes To Saved And Avoided EmissionsNo
    Tier3
    Function OptionStandard
    Device Applicationmulti-purpose
    Energy Efficiency OptimizedFalse
    Materialhinge stainless steelbody and door stainless steel 316L
    Number Of Doorsfront face 2
    Product NameSpacial S3X
    RangeSpacial
    ReturnabilityNo
    Surface Finishbody and door Scotch-Brite® brushed
    Total Lifecycle Carbon Footprint767 kg CO2 eq.
    Locking Description3 points lock, 3 mm double-bar
    Database Version2023-02
    Pcr VersionPCR-4-ed4-EN-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionProtect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure having the following dimensions H x L x D, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
    Functional-unit UnitUnit
    Energy Model - Manufacturing [A1-a3]Bulgaria, BG
    Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; Europe, EU-27
    Nbr. Of Units In Pkg.1
    Silicone-freeYes
    Warranty (In Months)18

    Environment Attributes Main

    China Rohs Regulation
    Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
    Reach Free Shvc
    Yes
    Toxic Heavy Metal Free
    Yes
    Silicon Free
    Yes
    Environmental Disclosure
    ENVPEP2109018EN
    Ip Degree Of Protection
    IP55 IEC 60529
    Packaging Without Single Use Plastic
    No
    Reach Regulation
    Free of Substances of Very High Concern above the threshold
    Pep Verification Date
    2024-11-13
    Psr Version
    PSR-0005-ed3.1-EN-2023 12 08
    Take BackNo
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Carbon Footprint767.0491961276682
    Eu Rohs DirectiveCompliant
    Packaging Made With Recycled CardboardNo
    Reach Free Of SvhcYes
    Pep CodeENVPEP2109018EN
    Pcr VersionPCR-4-ed4-EN-2021 09 06
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Product Or Component Type
    compact enclosure

    ETIM

    ETIM 8
    EC000261
    ETIM 9EC000261

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months
