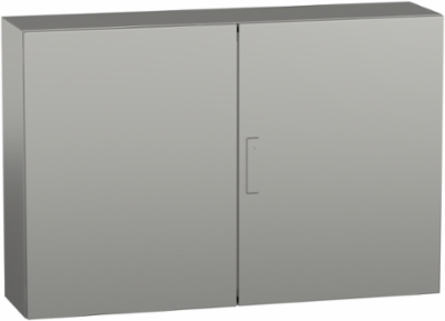

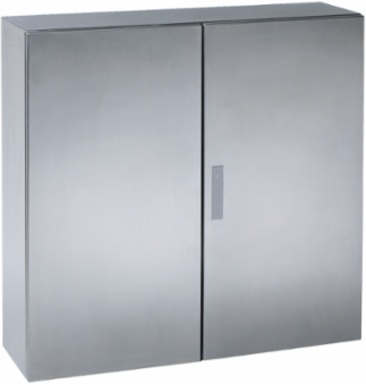

Schneider Electric NSYS3X801230 Wall Mounted Enclosure 800x1200x300mm Stainless Steel 304L, IP55
Schneider Electric NSYS3X801230 Wall Mounted Enclosure 800x1200x300mm Stainless Steel 304L, IP55
- MPN: NSYS3X801230
- PPN: SCH-NSYS3X801230
- UNSPSC: 39121327
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$2893.06/ EA
Description
Designed for durability and versatility, the Wall Mounted Enclosure from Schneider Electric is a robust solution for various applications. Constructed from high-quality stainless steel 304L, this enclosure features a double plain door design, ensuring both security and ease of access with its reversible door opening. With an IP55 rating, it provides excellent protection against dust and water ingress, making it ideal for use in corrosive environments. Measuring 800x1200x300mm and weighing 43 kg, this compact enclosure is suitable for a wide range of installations while adhering to stringent industry standards such as UL 508 type A and IEC 62208. Its solid construction, combined with a three-point locking mechanism, guarantees safety and reliability for your valuable equipment.
Features
- 304L stainless-steel for harsh environments
- Scotch-Brite® brushed finishing for enhanced aesthetic.
- Protection of internal components ensured by high impact resistance.
- High resistance to dust and water penetration.
Specifications
Physical Attributes
- Enclosure Nominal Height
- 800 mm
Enclosure Nominal Width1200 mm
Conformance Attributes
- Product Certifications
- UL 508 type A, CAN/CSA 22
StandardsIEC 62208, UL, cUL
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Body Type
- single piece body, cross-shaped structure, gutter shaped front rail
- Environmental Characteristic
- corrosive, specific hygiene
- Surface Finish
- body and door Scotch-Brite® brushed, lock chromium plated
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 113 kg CO2 eq., 112.87634448796165
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 439 kg CO2 eq., 438.82800879908854
- Local Data Status
- Publishable
- Legacy WEEE Scope
- Out
- EOLI Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- No
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Device Application
- multi-purpose
- Door Type
- Solid
- Lock Type
- 3 points lock, 3 mm double-bar
- Number Of Doors
- front face 2
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range
- Spacial
- Returnability
- No
- Total Lifecycle Carbon Footprint
- 639 kg CO2 eq.
- Medium Desc
- Wall mounted enclosure, PanelSeT S3X, stainless steel 304L, double plain door, 800x1200x300mm, IP55
- Product Kit Identifier
- N
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional Unit Description
- Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure having the following dimensions H x L x D, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
- Energy Model Manufacturing A1 A3 2
- Bulgaria, BG
- Energy Model Use B6 2
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Global Commercial Status
- Commercialised
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Device Composition1 body, 1 lock door, 2 perforated vertical profile drilled door, 2 doors
Materialbody and door stainless steel 304L, lock zamak, hinge stainless steel
Carbon Footprint Of The Distribution Phase A485.36887539537643, 85 kg CO2 eq.
Carbon Footprint Of The Installation Phase A52.1344347572967757, 2 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B60 kg CO2 eq., 0
Local Publishable Date2025-09-16
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticNo
Return IndicatorN
Function OptionStandard
Door Opening Sidereversible 120 °)
Energy Efficiency OptimizedFalse
Mounting Plate Descriptionwithout mounting plate
Package Weight Lbs43.000 kg
Product Or Component Typecompact enclosure
Removable Partsdoor by hinges
Sustainable PackagingNo
Type Of Gland Platewithout gland plate
Stocking FlagY
Pep CodeENVPEP2109018EN
Pep Verification Date2024-11-13
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional Unit UnitUnit
Energy Model Installation A5 2Electricity Mix; Low voltage; 2018; Europe, EU-27
Energy Model End Of Life C1 C4 2Electricity Mix; Low voltage; 2018; Europe, EU-27
Product NameSpacial S3X
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Free SHVC
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 639.2076634397233
- IP Degree Of Protection
- IP55 IEC 60529
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2024-11-13
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
China ROHS RegulationProduct out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
ROHS Exemption InformationYes
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2109018EN
Packaging Made With Recycled CardboardNo
Reach Free Of SVHCYes
Pep CodeENVPEP2109018EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- compact enclosure
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Country of Origin
- United States
