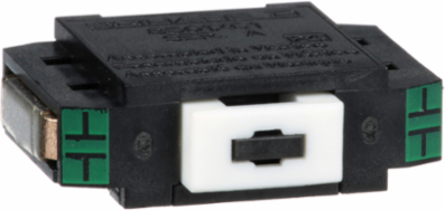

Square D 8501XC1 Harmony Standard Contact Cartridge, 10A 600V AC, 1NO/1NC

MPN: 8501XC1
UPC: 785901537175
PPN: SCH-8501XC1
UNSPSC: 39122331

$30.85

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexibility. They are ideal for applications where long life, high reliability and ease of maintenance are important. The 8501X relay family offers a complete line of relays and accessories for most control applications. This replacement contact cartridge can be installed in any standard relay, adder deck or timer attachment. This contact cartridge can be installed as a NO or as a NC contact without disturbing the wiring. The plug in design makes contact conversion or replacement very easy. The contact cartridge is UL listed and CSA certified.

Features

Modular construction for greater design flexibility
High reliability and ease of maintenance

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico

Weight	1587 g

Complementary Attributes

Rated Breaking Capacity

6 A 120 V AC inductive control circuit UL 5083 A 240 V AC inductive control circuit UL 5081.5 A 480 V AC inductive control circuit UL 5081.2 A 600 V AC inductive control circuit UL 508, 10 A <= 600 V AC resistive control circuit UL 508, 1.1 A 125 V DC inductive control circuit UL 5080.55 A 250 V DC inductive control circuit UL 5080.2 A 301...600 V DC inductive control circuit UL 508, 4 A 125 V DC resistive control circuit UL 508, 0.8 A 250 V DC resistive control circuit UL 508

Icm Rated Short Circuit Making Capacity

60 A 120 V AC inductive control circuit UL 50830 A 240 V AC inductive control circuit UL 50815 A 480 V AC inductive control circuit UL 50812 A 600 V AC inductive control circuit UL 508, 10 A <= 600 V AC resistive control circuit UL 508, 1.1 A 125 V DC inductive control circuit UL 5080.55 A 250 V DC inductive control circuit UL 5080.2 A 301...600 V DC inductive control circuit UL 508, 4 A 125 V DC inductive control circuit UL 508, 0.8 A 250 V DC resistive control circuit UL 508

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Certificate Agency	CE, UL recognized E78403 CCN NKCR2, CSA LR60905 class 3211 02
Carbon Footprint Of The End Of Life Phase C1 To C4	2 kg CO2 eq., 2.4949686367
Carbon Footprint Of The Manufacturing Phase A1 To A3	11 kg CO2 eq., 10.5634087979
Local Data Status	Publishable
Return Indicator	Y
Weee Product Category	5
Eoli Availability Display	Yes
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1332
China Rohs In Scope	No
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	8501X
Returnability	Yes
Sustainable Packaging	Yes
Database Version	2022-01
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	10

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Carbon Footprint Of The Distribution Phase A4	0.2075250302, 0.2 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.0127961867, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	kg CO2 eq., 0
Local Publishable Date	2026-08-26
Weee Scope	Out
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1310013EN
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Contacts Type And Composition	1 NO 1 standard contact cartridge
Product Or Component Type	standard contact cartridge
Relay Type	control relay
Software Version	v5.9.4
Total Lifecycle Carbon Footprint	13 kg CO2 eq.
Data Source	extrapolated product
Customs Code	8538908180
Functional Unit Description	To control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits, or where several circuits must be controlled by one signal during 10 years with a 99% use rate, in compliance with French standards.
Functional Unit Unit	unité (unit)
Recyclability Potential In %	70

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Recycled Metal Content At Cr Level	0 %
Carbon Footprint	13.2786986514
Environmental Disclosure	ENVPEP1310013EN
Packaging Made With Recycled Cardboard	Yes
Pep Code	ENVPEP1310013EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

Take Back	No
Mercury Free	Yes
Circularity Profile	ENVEOLI1310013EN
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	Yes
Pep Verification Date	2022-10-01
Psr Version	PSR-0005-ed2-2016 03 29
