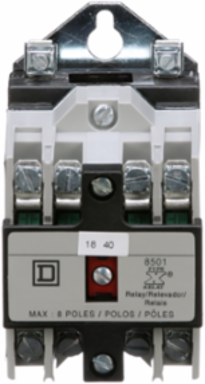

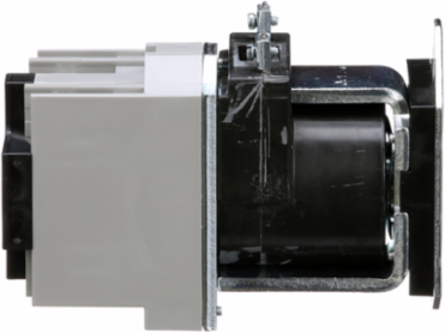

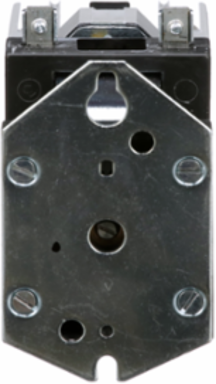

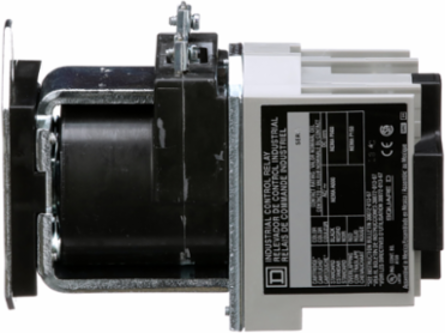

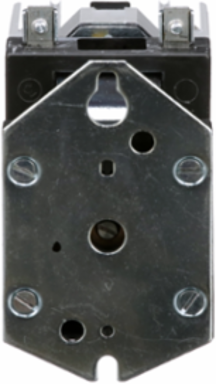

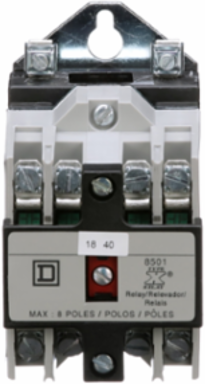

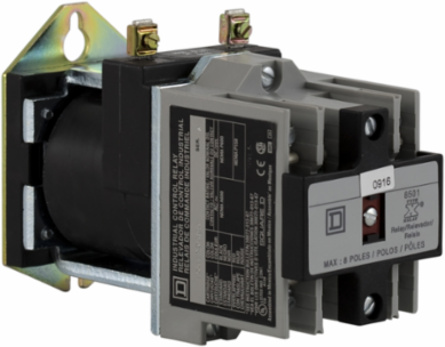

Square D 8501XDO20V53 NEMA Control Relay, 10A at 600 VAC, 2 NO Contacts, 24 VDC Coil
- MPN: 8501XDO20V53
- UPC: 785901537441
- PPN: SCH-8501XDO20V53
- UNSPSC: 39122331
CAD
$339.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexibility. They are ideal for applications where long life, high reliability and ease of maintenance are important. This relay has contacts with a 10 ampere resistive current rating at 600 VAC. The contacts also have an A600 inductive contact rating. This relay is supplied with two 8501XC1 contact cartridges. The contact cartridges are installed as normally open contacts. The machine tool relays have straight through wiring. This makes wiring easier. The two plug in contact cartridges in this relay make contact conversion or replacement very easy. Contact conversion or replacement can be done without removing any wiring. Contacts are supplied with pressure wire connectors so wires can be easily terminated. !8 to 12 AWG copper wire can be used with this relay. Relay has a 24 VDC replaceable coil. Relay is UL listed and CSA certified.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico, United States |
|---|---|
| Depth | 5.17 in |
| Weight | 1506 g |
|---|
Complementary Attributes
| Rated Breaking Capacity | 6 A 120 V AC inductive control circuit UL 5080.8 A 250 V DC resistive control circuit UL 5083 A 240 V AC inductive control circuit UL 5081.5 A 480 V AC inductive control circuit UL 5081.2 A 600 V AC inductive control circuit UL 50810 A <= 600 V AC resistive control circuit UL 5081.1 A 125 V DC inductive control circuit UL 508, 0.55 A 250 V DC inductive control circuit UL 5080.2 A 301...600 V DC inductive control circuit UL 508, 4 A 125 V DC resistive control circuit UL 508 |
|---|---|
| Control Circuit Voltage Limits | operational 0.8...1.1 Uc DC |
| Uc Control Circuit Voltage | 24 V DC |
| Icm Rated Short Circuit Making Capacity | 60 A 120 V AC inductive control circuit UL 5080.8 A 250 V DC resistive control circuit UL 50830 A 240 V AC inductive control circuit UL 50815 A 480 V AC inductive control circuit UL 50812 A 600 V AC inductive control circuit UL 50810 A <= 600 V AC resistive control circuit UL 5081.1 A 125 V DC inductive control circuit UL 508, 0.55 A 250 V DC inductive control circuit UL 5080.2 A 301...600 V DC inductive control circuit UL 508, 4 A 125 V DC inductive control circuit UL 508 |
|---|---|
| Line Rated Current | 10 A AC5 A DC |
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Certificate Agency | UL listed file E78403 CCN NKCR, CSA LR60905 class 3211 03 |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 3 kg CO2 eq., 2.644248757555406 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 9 kg CO2 eq., 9.261141437206177 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | Yes |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Contacts Type And Composition | 2 NO 2 standard contact cartridges |
| Inrush Power In W | 18 W |
| Operating Time | 37 ms - pick-up21 ms - drop-out |
| Product Or Component Type | relay |
| Relay Type | control |
| Software Version | v5.9.4 |
| Tightening Torque | control circuit 1.02-1.36 N.m screw terminals |
| Database Version | 2022-01 |
| Height Nominal | 3.56 in |
| Nbr. Of Units In Pkg. | 1 |
| Hold In Power Consumption In W | 18-18 W |
| Functional Unit Description | The product is an electrically operated switch which enables current to flow through it on one circuit and can switch a current on and off on a second circuit.This relay has contacts with a 10 ampere resistive current rating at 600 VAC and it has life span of 10 years with power consumption of 18.36W with 20% use rate and adhering to international standards UL & CSA. |
| Functional Unit Unit | Unit |
| Energy Consumption On Product Lifetime In Kwh | 315.36 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Carbon Footprint Of The Distribution Phase A4 | 0.19693301544660843, 0.2 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.38435871054398923, 0.4 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 169 kg CO2 eq., 168.55882352941177 |
| Local Publishable Date | 2026-08-26 |
| Weee Scope | Out |
| Scope Perimeter | Outside of Europe |
| End Of Life Doc Ref | ENVEOLI1409020EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Awg Gauge | 18 AWG...12 AWG copper |
| Electrical Connection | screw clamp terminals |
| Mounting Support | panel |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range Of Product | 8501X |
| Returnability | No |
| Sustainable Packaging | Yes |
| Total Lifecycle Carbon Footprint | 181 kg CO2 eq. |
| Data Source | extrapolated product |
| Width Nominal | 2.23 in |
| Customs Code | 8536490080 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Recyclability Potential In % | 70 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -40-160 °F, -40-160 °F |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI1409020EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP1310013EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Carbon Footprint | 181.04550545016394 |
| Environmental Disclosure | ENVPEP1310013EN |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2024-06-02 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
General Attributes
| Product Or Component Type | relay |
|---|
| Range Of Product | 8501X |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
