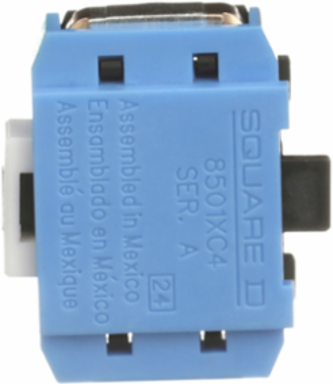

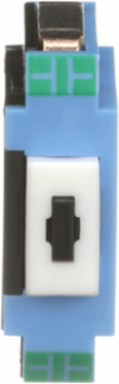

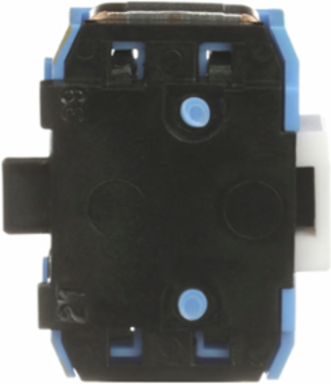

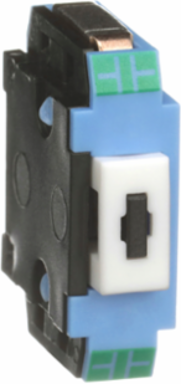

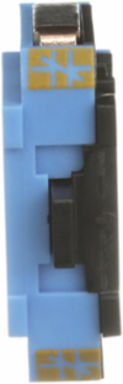

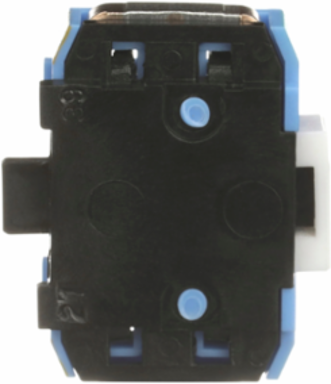

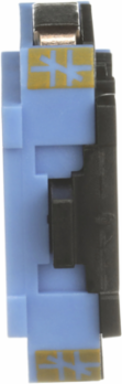

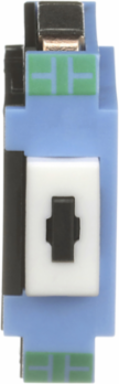

Square D 8501XC4 NEMA Control Relay, Type X, 10A Resistive, 1NO/1NC Contact

MPN: 8501XC4
UPC: 785901537137
PPN: SCH-8501XC4
UNSPSC: 39122331

$77.11

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexibility. They are ideal for applications where long life, high reliability and ease of maintenance are important. The 8501X relay family offers a complete line of relays and accessories for most control applications. This replacement contact cartridge can be installed in any 8501XMO master control relay. This contact cartridge can be installed as a NO or as a NC contact without disturbing the wiring. The plug in design makes contact conversion or replacement very easy. The contact cartridge is UL listed and CSA certified. The contact cartridge is UL listed and CSA certified.

Features

They are ideal for applications where long life, high reliability and ease of maintenance are important
This DC utility relay is Ideal for utility plant applications where reliable performance and a pure DC power plant
This relay has contacts with a 10 ampere resistive current rating at 600 VAC
The contacts also have an A600 inductive contact rating
DC utility relays are available with up to 12 NO or NC poles
This relay is supplied with eight 8501XC1 contact cartridges

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico, United States

Complementary Attributes

Rated Breaking Capacity

6 A 120 V AC inductive control circuit UL 5083 A 240 V AC inductive control circuit UL 5081.5 A 480 V AC inductive control circuit UL 5081.2 A 600 V AC inductive control circuit UL 508, 10 A <= 600 V AC resistive control circuit UL 508, 1.1 A 125 V DC inductive control circuit UL 5080.55 A 250 V DC inductive control circuit UL 5080.2 A 301...600 V DC inductive control circuit UL 508, 4 A 125 V DC resistive control circuit UL 508, 0.8 A 250 V DC resistive control circuit UL 508

Icm Rated Short Circuit Making Capacity

60 A 120 V AC inductive control circuit UL 50830 A 240 V AC inductive control circuit UL 50815 A 480 V AC inductive control circuit UL 50812 A 600 V AC inductive control circuit UL 508, 10 A <= 600 V AC resistive control circuit UL 508, 1.1 A 125 V DC inductive control circuit UL 5080.55 A 250 V DC inductive control circuit UL 5080.2 A 301...600 V DC inductive control circuit UL 508, 4 A 125 V DC inductive control circuit UL 508, 0.8 A 250 V DC resistive control circuit UL 508

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Certificate Agency	UL recognized E78403 CCN NKCR2, CE, CSA LR60905 class 3211 02
Local Publishable Date	2026-08-10
Weee Scope	Out
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1310013EN
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Contacts Type And Composition	1 NO 1 master contact cartridge
Product Or Component Type	master contact cartridge
Relay Type	control relay
Sustainable Packaging	Yes
Customs Code	8536490080

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Local Data Status	Publishable
Return Indicator	Y
Weee Product Category	5
Eoli Availability Display	Yes
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1332
China Rohs In Scope	No
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	8501X
Returnability	Yes
Nbr. Of Units In Pkg.	1
Warranty In Months	18

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Recycled Metal Content At Cr Level	0 %
Circularity Profile	ENVEOLI1310013EN
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	Yes
