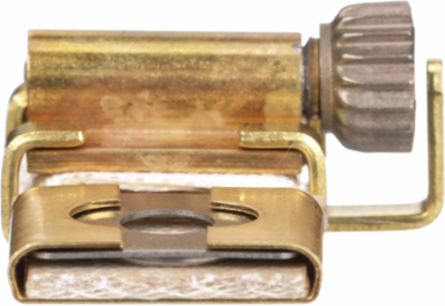

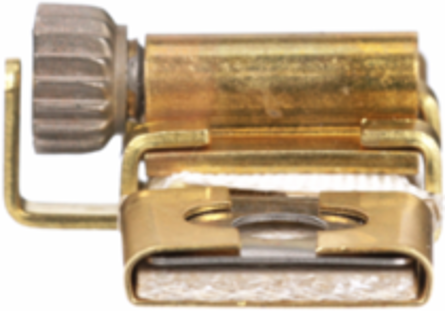

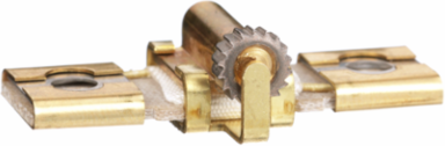

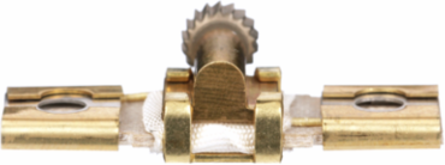

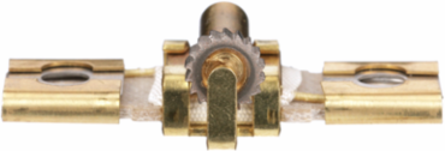

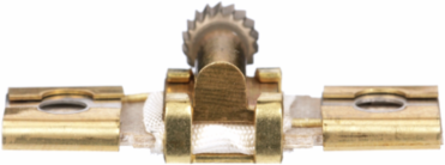

Square D B1.88 Thermal Unit Type S & B, Melting Alloy, Class 20, PVC Free, 16 Inch
- MPN: B1.88
- UPC: 785901587323
- PPN: SCH-B1.88
CAD
$49.86
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Linergy NEMA sectional terminal blocks are for terminating wire and are designed to NEMA standards. This Square D terminal block mounting track is designed specifically for 9080G terminal blocks. The track is pre-punched with oblong slots to make mounting the track to the panel easier. This terminal block track is 16 inches long. This track is made of galvanized steel.
Features
- By utilizing a premium, time-tested thermal melting alloy, the B1.88 utilizes a mechanical design where heat generated by excessive current draws liquefies a specialized formula metal alloy, releasing the mechanism to trip the starter contacts. This non-adjustable, tamper-proof thermal design guarantees that the overload setting cannot be field-modified or bypassed by unauthorized personnel. This ensures dependable, localized safety that safeguards your expensive motor windings from permanent insulation damage.
- Boasting a certified Class 20 standard trip rating, this Schneider Electric heater allows a safe delay for your motor to draw necessary inrush currents during high-inertia cold starts, while executing a rapid, protective power cutoff within 20 seconds.
Documentation & Downloads
Specifications
Additional
- Motor Tripping Class
- 20
- Thermal Overload Type
- Melting alloy
- Eu RoHS Directive
- Out of EU RoHS scope
- REACH Regulation
- Contains SVHC above threshold
Range Of ProductB
MaterialGalvanized steel, PVC Free
China RoHS RegulationOut of China RoHS scope
