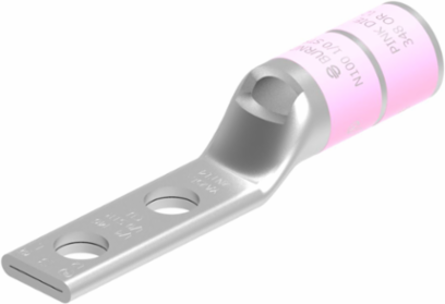

Burndy YA25L2NT1490 Standard Length Barrel Terminal, 1/0 Copper, 600V-35kV, 2 Holes, Pink
- MPN: YA25L2NT1490
- UPC: 781810436738
- PPN: BUR-10061672
CAD
$44.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu Tubing Hylug; 2 Holes with Inspection Window; 1/0 STR Code, 100 Navy; 600V-35kV; 1/4" stud; Standard; Compression; 0.27 in BCD; Pink
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 7/8 in
- Dimension - Bolt Hole Size inch
- 0.27 in
- Dimension - Hole Size inch
- 0.27 in
- Dimension - L Length Overall mm
- 43 mm
- Dimension - N inch
- 0.31 in
- Dimension - Pad Width inch
- 0.48 in
- Dimension - Z inch
- 0.36 in
Dimension - B Length inch0.88 in
Dimension - D inch1.30 in
Dimension - Hole Size mm7 mm
Dimension - Length Overall inch1.68 in
Dimension - Outside Diameter inch0.51 in
Dimension - Strip Length inch15/16
Physical Attribute - Tongue Angle90 Degree
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - Copper DLO Size Range
- N/A
- Conductor - Copper Str Navy Size Range
- 100 (61) Navy
- Conductor - Copper Str Size Range
- 1/0
Conductor - Copper Str Navy Size100 (61) Navy
Conductor - Copper Str Size1/0
Conductor - MaterialCopper
General
- Color Code
- Pink
- Die Index
- 12
- Feature - Barrel Type
- Standard
- Physical Attribute - Number of Holes
- 2
- Plating Type
- Tin - Electro Plated
- Trade Name
- HYLUG™
- UPC 12 Digit
- 7818104367388
Connector TypeTerminal
Feature - Barrel StyleChamfered
MaterialCopper
PlatedY
Temperature Rating194
UPC781810436738
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 5
