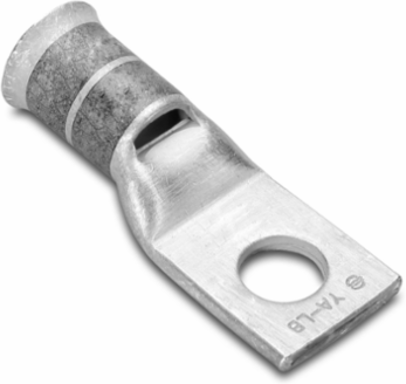

Burndy YA32LB Standard Length Belled Barrel Connector, 400 kcmil, 1 Hole, 3.31 Inch Length
- MPN: YA32LB
- UPC: 781810505410
- PPN: BUR-50216C
CAD
$64.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu Belled Hylug, 1 Hole with Inspection Window, 400 kcmil Code, 400 Navy, 600V-35kV, 5/8" stud, Standard, Compression, Blue
Documentation & Downloads
Specifications
Dimensions
| Dimension - B Length fraction | 1-3/16 in |
|---|---|
| Dimension - Bolt Hole Size inch | 0.688 in |
| Dimension - Hole Size inch | 0.69 in |
| Dimension - L Length Overall mm | 84 mm |
| Dimension - N inch | 0.66 in |
| Dimension - Pad Width inch | 1.40 in |
| Dimension - Z inch | 0.67 in |
| Dimension - B Length inch | 1.17 in |
|---|---|
| Dimension - Bolt Size fraction | 5/8 |
| Dimension - Hole Size mm | 17.48 mm |
| Dimension - Length Overall inch | 3.31 in |
| Dimension - Outside Diameter inch | 0.95 in |
| Dimension - Strip Length inch | 1 1/4 |
| Physical Attribute - Tongue Angle | Straight |
Certifications and Compliance
| Certification - CSA Approved | Yes |
|---|---|
| Certification - UL Recognized | No |
| Industry Standard(s) | UL468A-468B |
| Standards - RoHS Compliance Status | CM |
| Certification - ETL | No |
|---|---|
| Certification - cULus | No |
| Standards - Industry Standards Met | UL468A-468B |
| UL Listed | Yes |
Conductor Related
| Conductor - Copper DLO Size | 313.1 (775/#24) DLO |
|---|---|
| Conductor - Copper Flex H Size | 300 kcmil |
| Conductor - Copper Flex K Size | 300 kcmil |
| Conductor - Copper Str Navy Size | 400 (27) |
| Conductor - Material | Copper |
| Conductor - Copper Flex G Size | 300 kcmil |
|---|---|
| Conductor - Copper Flex I Size | 300 kcmil |
| Conductor - Copper Flex M Size | 300 kcmil |
| Conductor - Copper Str Size | 400 kcmil |
General
| Color Code | Blue |
|---|---|
| Die Index | 19;1026 |
| Feature - Barrel Type | Standard |
| Physical Attribute - Number of Holes | 1 |
| Plated | Y |
| Trade Name | HYLUG™ |
| UPC | 781810505410 |
| Connector Type | Terminal |
|---|---|
| Feature - Barrel Style | Belled |
| Material | Copper |
| Physical Attribute - Tongue Type | Standard |
| Plating Type | Tin - Electro Plated |
| Type | Standard Belled Barrel, Tin Plated |
| UPC 12 Digit | 7818105054100 |
Electrical Ratings
| Rating - KVA | 35 kV |
|---|---|
| Voltage - Maximum | 35000 |
| Rating - Minimum Voltage | 600 |
|---|
Logistics
| Minimum Pack Quantity | 6 |
|---|
