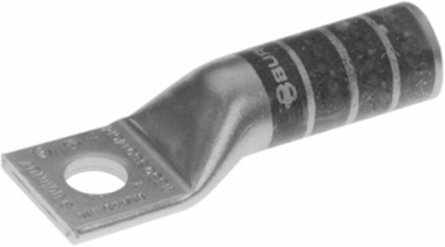

Burndy YA5CN HYLUGTM Terminal, 5 AWG, 1 Hole, 2.67 Inch Overall Length, Tin Plated
- MPN: YA5CN
- UPC: 781810317457
- PPN: BUR-10015624
CAD
$32.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu Tubing HYLUG™ , 1 Hole, #5 AWG, Stranded Cu Cable
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length inch
- 1.12
- Dimension - Bolt Size fraction
- 1/2
- Dimension - Hole Size mm
- 14
- Dimension - Length Overall inch
- 2.67
- Dimension - Outside Diameter inch
- 0.3
- Dimension - Strip Length inch
- 1-3/16 in
- Dimension - Thread Size
- 1/2
- Physical Attribute - Tongue Angle
- Straight
Dimension - Bolt Hole Size inch0.56
Dimension - Hole Size inch0.56
Dimension - L Length Overall mm68
Dimension - N inch0.63
Dimension - Pad Width inch0.83
Dimension - Stud Size inch1/2 in
Dimension - Z inch0.64
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - Copper Solid Size
- 5 AWG
- Conductor - Copper Str Navy Size Range
- 30 (19) Navy
- Conductor - Material
- Copper
Conductor - Copper Str Navy Size30 (19) Navy
Conductor - Copper Str Size5 AWG
General
- Color Code
- Blue
- Die Index
- 7;374
- Feature - Barrel Type
- Long
- Physical Attribute - Number of Holes
- 1
- Plated
- Y
- Trade Name
- HYLUG™
- UPC
- 781810317457
Connector TypeTerminal
Feature - Barrel StyleChamfered
MaterialCopper
Physical Attribute - Tongue TypeStraight
Plating TypeTin
TypeLong Barrel, Tin Plated
UPC 12 Digit7818103174577
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 50
