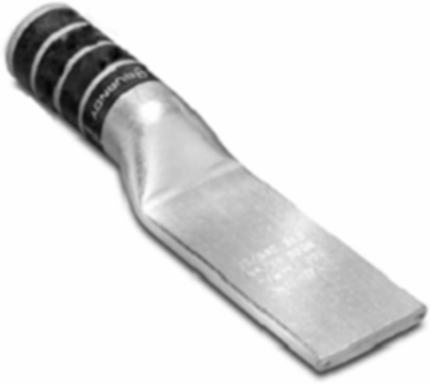

Burndy YA6C2NU HYLUGTM Long Barrel Terminal, 6 AWG Copper, 4.4 Inch Length, Tin Plated
- MPN: YA6C2NU
- UPC: 781810019931
- PPN: BUR-502401
CAD
$30.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu Tubing HYLUG™ (Undrilled), Blank Tongue, #6 AWG Code, Long, Compression, Blue
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length inch
- 1.12
- Dimension - Length Overall inch
- 4.4
- Dimension - Pad Width inch
- 0.83
- Dimension - Stud Size inch
- #10
- Physical Attribute - Tongue Angle
- Straight
Dimension - L Length Overall mm112
Dimension - Outside Diameter inch0.29
Dimension - Strip Length inch1-3/16 in
Dimension - Z inch0.64
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Industry Standard(s)
- UL468A-468B
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
Standards - Industry Standards MetUL468A-468B
UL ListedYes
Conductor Related
- Conductor - Copper Solid Size
- 6 AWG
- Conductor - Material
- Copper
Conductor - Copper Str Size6 AWG
General
- Color Code
- Blue
- Die Index
- 7;374
- Feature - Barrel Type
- Long
- Physical Attribute - Number of Holes
- 0
- Plated
- Y
- Trade Name
- HYLUG™
- UPC
- 781810019931
Connector TypeTerminal
Feature - Barrel StyleChamfered
MaterialCopper
Physical Attribute - Tongue TypeStraight
Plating TypeTin
TypeLong Barrel, Tin Plated
UPC 12 Digit7818100199311
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 1
