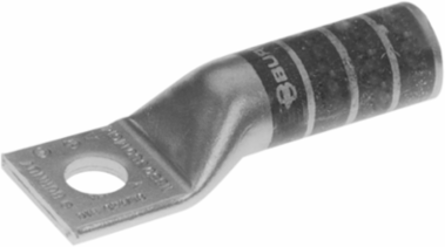

Burndy YA6CT4 HYLUGTM Copper Terminal, 6 AWG, 1 Hole, 2.13 Inch Length, 600V Rating
- MPN: YA6CT4
- UPC: 781810173060
- PPN: BUR-25014714
CAD
$28.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu Terminal, 1 Hole, #6 Str, 3/8" Stud, 2.53" L, 0.58" W, Tin Plated, Blue, 7 Index.
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length inch
- 1.12 in
- Dimension - D inch
- 0.74 in
- Dimension - Hole Size mm
- 10 mm
- Dimension - Length Overall inch
- 2.13 in
- Dimension - Outside Diameter inch
- 0.29 in
- Dimension - Strip Length inch
- 1-3/16
- Physical Attribute - Tongue Angle
- Straight
Dimension - Bolt Hole Size inch0.39 in
Dimension - Hole Size inch0.40 in
Dimension - L Length Overall mm54 mm
Dimension - N inch0.38 in
Dimension - Pad Width inch0.58 in
Dimension - Z inch0.36 in
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - Copper Solid Size
- 6 AWG
- Conductor - Copper Str Size
- 6 AWG
- Conductor - Material
- Copper
Conductor - Copper Solid Size Range6 AWG
Conductor - Copper Str Size Range6 AWG
General
- Application
- For termination, Telecom Market
- Connector Type
- Terminal
- Feature - Barrel Style
- Chamfered
- Material
- Copper
- Plated
- Y
- Sub Brand
- HYLUG
- Trade Name
- HYLUG™
- UPC
- 781810173060
Color CodeBlue
Die Index7
Feature - Barrel TypeLong
Physical Attribute - Number of Holes1
Plating TypeTin
Temperature Rating194
TypeTerminal
UPC 12 Digit7818101730600
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 100
