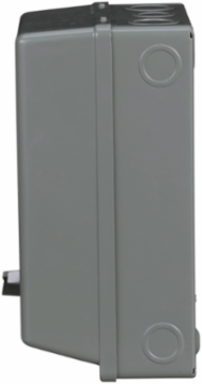

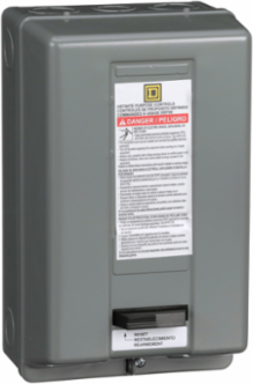

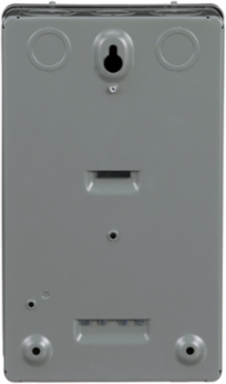

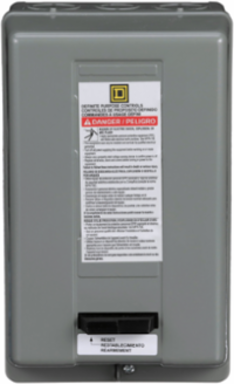

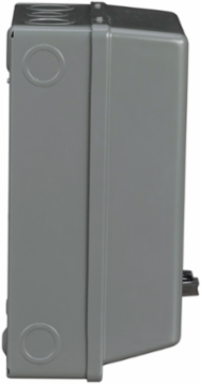

Square D 8911DPSG22V02 Definite Purpose Starter, 25A, 2 Pole, 120VAC Coil, NEMA 1
- MPN: 8911DPSG22V02
- UPC: 785901024651
- PPN: SCH-8911DPSG22V02
CAD
$381.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This definite purpose starter from Schneider Electric is designed to provide reliable motor control for industrial applications. With a 25A capacity and a dual-pole configuration, it effectively manages motor start and stop operations, ensuring smooth performance in various environments. Featuring a 120VAC coil, it integrates easily into existing electrical systems, particularly those adhering to NEMA 1 standards. Built for durability and efficiency, this starter is an essential component for automation and control in modern industrial settings, delivering unmatched dependability for your motor management needs.
Documentation & Downloads
Specifications
Additional
- Rated Current
- 25 A
- Locked Rotor Rated Current
- 150 A 230 V AC, 125 A 460 V AC, 100 A 575 V AC
- Control Circuit Voltage
- 110 V AC 50 Hz, 120 V AC 60 Hz
- Phase
- 1 phase
- Number of Thermal Units Required
- 1
- NEMA Degree of Protection
- NEMA 1
- EU RoHS Directive
- Compliant with Exemptions
- Range of Product
- DPS
- Country of Origin
- China
Horsepower Rating2 Hp 115 V AC, 1 phase; 5 Hp 230 V AC, 1 phase
Rated Operational Voltage600 V AC
Number of Poles2P
Thermal Overload TypeMelting alloy
Enclosure MaterialPainted sheet steel
Mercury FreeYes
China RoHS RegulationProduct out of China RoHS scope
Warranty18 months
