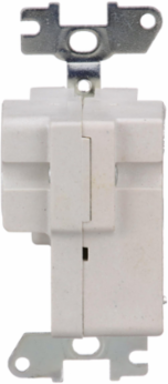

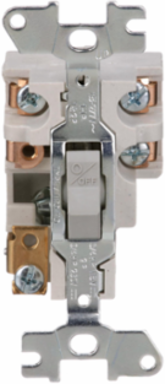

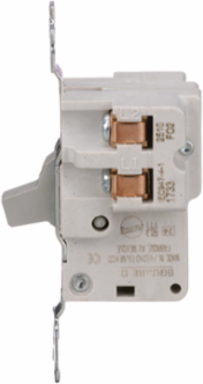

Square D 2510FO2 Manual Starter 1 HP at 277VAC, 16A, Toggle Operated, 2 Poles
- MPN: 2510FO2
- UPC: 785901554158
- PPN: SCH-2510FO2
CAD
$155.45
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

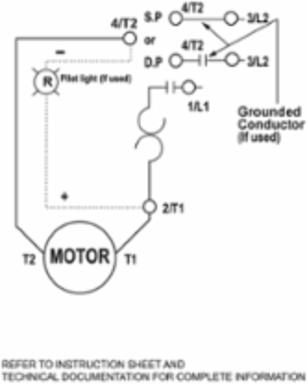

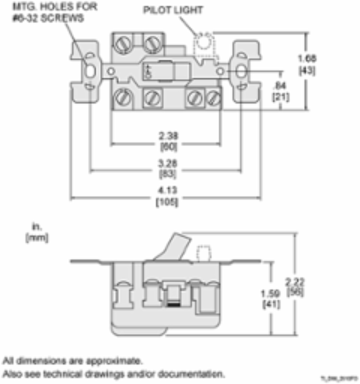

2510F fractional horsepower non-reversing manual starters provides manual On-Off control with overload protection for small motors. Designed for fractional single phase motors up to 1 HP. The toggle operator provides an easy manual On-Off control of small motors. These manual starters are used in a variety of industrial and commercial installations. Typical applications include fans, conveyors, pumps, and small machine tools. Melting alloy thermal units are used with this manual starter to sense over current conditions. Overload thermal unit is ordered separately to match motor data. This 2 pole nonreversing manual starter has a 16A current rating. Starter has a 1 HP at 115 VAC, 2 HP at 230 VAC, 1 HP at 277 VAC and 0.75 HP at 115 and 230 VDC ratings. This NEMA 1 general purpose enclosure is a surface mounting enclosure. This manual starter is 4.13 inches tall, 1.69 inches wide and 2.22 inches deep. It weighs 0.33 lb. This device is without a pilot light indicator. Manual starter is UL listed and CSA certified.
Features
- The Schneider Electric Square D 2510FO2 utilizes a dependable melting alloy overload relay mechanism to provide reliable overcurrent protection for small single-phase AC motors up to 1 HP. By sensing prolonged overcurrent conditions, it automatically cuts power to prevent costly winding damage in critical mechanical equipment like fans, conveyors, pumps, and small machine tools
- Engineered for precise electrical performance, this 2-pole, non-reversing manual starter supports a maximum current rating of 16A. It is engineered to handle a broad range of fractional workloads, offering robust ratings of 1 HP at 115 VAC, 2 HP at 230 VAC, 1 HP at 277 VAC, and 0.75 HP for specialized 115/230 VDC systems.
- Featuring a compact, space-saving open-style design, the 2510FO2 measures just 4.13 inches high by 1.69 inches wide and fits seamlessly into industry-standard single-gang switch boxes. This allows commercial maintenance teams and electrical contractors to easily direct-mount the unit inside walls or directly onto machinery frames using standard switch cover plates
- The Square D Class 2510 Type F series starter is fully UL Recognized (E42243) and CSA Certified, meeting strict North American electrical safety standards. Its heavy-duty toggle operator delivers decisive, manual on-off control that stands up to rugged commercial use while ensuring code compliance during routine facility inspections.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Depth2.22 in
Complementary Attributes
- Maximum Horse Power Rating
- 1 hp 115 V AC, 1 hp 277 V AC0.75 hp 115 V DC, 0.75 hp 230 V DC, 2 hp 230 V AC
Line Rated Current16 A
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- UL recognized E42243 CCN NLRV2, CSA LR25490 class 3211 05
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.2 kg CO2 eq., 0.24072733744685626
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.9 kg CO2 eq., 0.9036651854855684
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Awg Gauge
- 14 AWG...12 AWG copper
- Control Type
- toggle switch
- Energy Efficiency Optimized
- False
- Motor Starter Type
- non reversing
- Phase
- 1 phase
- Product Or Component Type
- Single Unit Manual Starter
- Reset
- manual
- Software Version
- v6.2.5-6
- Thermal Overload Type
- melting alloy
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- When a product covered by this PSR includes additional functions, the functional unit defined in the PSR shall be used and shall be completed in order to take into account these additional functionsTo control, regulate, and protect the installation from overload and short circuits in a circuit with the rated voltage Ue and rated current In during the reference service life of the product of 20 years.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; United States, US
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; United States, US
- Recyclability Potential In %
- 74
- Width Nominal
- 1.69 in
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536504000
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]0.044561886790625484, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.01844913744350622, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]9 kg CO2 eq., 8.860743617797104
Local Publishable Date2026-03-25
Stocking FlagN
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
China Rohs In ScopeNo
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Cable Entrywithout
Electrical Connectionscrew clamp terminals
Local Signallingno indicator
Number Of Poles2P
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductF
ReturnabilityYes
Sustainable PackagingNo
Total Lifecycle Carbon Footprint10 kg CO2 eq.
Pep CodeENVPEP2507018EN
Pep Verification Date2025-09-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal4.13 in
[Ue] Rated Operational Voltage277 V AC230 V DC
Package Weight(Lbs)154.2 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 10.06814716496366
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-09-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Take BackNo
Mercury FreeYes
Environmental DisclosureENVPEP2507018EN
Nema Degree Of Protectionnot rated (open device)
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2507018EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Phase
- 1 phase
- Range Of Product
- F
Product Or Component TypeSingle Unit Manual Starter
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
