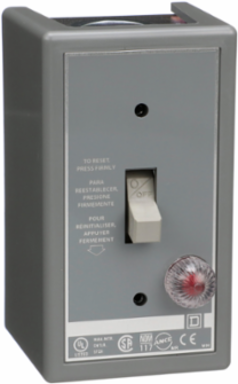

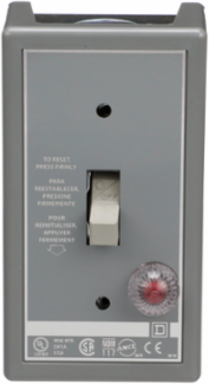

Square D 2510FG2P Manual Starter 1 HP 16A 2-Pole NEMA 1 with Toggle Switch and Red Indicator

MPN: 2510FG2P
UPC: 785901553960
PPN: SCH-2510FG2P

$258.86

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

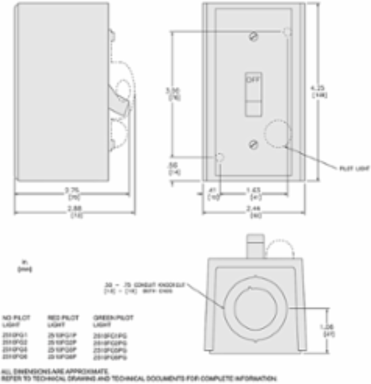

2510F fractional horsepower non-reversing manual starters provides manual On-Off control with overload protection for small motors. Designed for fractional single phase motors up to 1 HP. The toggle operator provides an easy manual On-Off control of small motors. These manual starters are used in a variety of industrial and commercial installations. Typical applications include fans, conveyors, pumps, and small machine tools. Melting alloy thermal units are used with this manual starter to sense over current conditions. Overload thermal unit is ordered separately to match motor data. This 2 pole nonreversing manual starter has a 16A current rating. Starter has a 1 HP at 115 VAC, 2 HP at 230 VAC, 1 HP at 277 VAC and 0.75 HP at 115 and 230 VDC ratings. This NEMA 1 general purpose enclosure is a surface mounting enclosure. This manual starter is 4.25 inches tall, 2.44 inches wide and 2.88 inches deep. This device has a red pilot light indicator. Manual starter is UL listed and CSA certified.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico

Depth	2.75 in

Complementary Attributes

Maximum Horse Power Rating	1 hp 115 V AC, 1 hp 277 V AC0.75 hp 115 V DC, 0.75 hp 230 V DC, 2 hp 230 V AC

Line Rated Current	16 A

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB, SC
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Certificate Agency	UL listed file E42243 CCN NLRV, CSA LR25490 class 3211 05
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.6 kg CO2 eq., 0.5806586916602361
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	2 kg CO2 eq., 2.1797318487718242
Local Data Status	Publishable
Return Indicator	Y
Weee Scope	In
Scope Perimeter	Outside of Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
China Rohs In Scope	No
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Cable Entry	0.5" and 0.75" knock-outs (top and bottom)
Electrical Connection	screw clamp terminals
Local Signalling	red indicator
Number Of Poles	2P
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	F
Returnability	Yes
Sustainable Packaging	No
Total Lifecycle Carbon Footprint	12 kg CO2 eq.
Database Version	2024-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	When a product covered by this PSR includes additional functions, the functional unit defined in the PSR shall be used and shall be completed in order to take into account these additional functionsTo control, regulate, and protect the installation from overload and short circuits in a circuit with the rated voltage Ue and rated current In during the reference service life of the product of 20 years.
Functional-unit Unit	unit
Energy Model - Manufacturing [A1-a3]	Electricity Mix; Low voltage; 2020; United States, US
Energy Model - Use [B6]	Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential In %	74
Width Nominal	2.44 in
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536504000

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market Segmentation	Commercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]	0.10748777914543442, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.04450118596343946, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	9 kg CO2 eq., 8.860743617797104
Local Publishable Date	2025-11-18
Stocking Flag	N
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Full Compliance Status	Compliant By Exemption
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Awg Gauge	14 AWG...12 AWG copper
Control Type	toggle switch
Energy Efficiency Optimized	False
Motor Starter Type	non reversing
Phase	1 phase
Product Or Component Type	Single Unit Manual Starter
Reset	manual
Software Version	v6.2.5-6
Thermal Overload Type	melting alloy
Pep Code	ENVPEP2507018EN
Pep Verification Date	2025-09-01
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	20
Energy Model - Installation [A5]	No energy used
Energy Model - End Of Life [C1-c4]	Global, European and French datasets are used.
Height Nominal	4.25 in
[Ue] Rated Operational Voltage	277 V AC230 V DC
Package Weight(Lbs)	371.946 g
Warranty (In Months)	18

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Recycled Metal Content At Cr Level	0 %
Carbon Footprint	11.773123123338038
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2025-09-01
Psr Version	PSR-0005-ed3.1-EN-2023 12 08

Take Back	No
Mercury Free	Yes
Environmental Disclosure	ENVPEP2507018EN
Nema Degree Of Protection	NEMA 1 Plastic standard size
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP2507018EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
