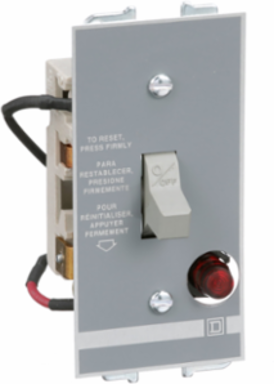

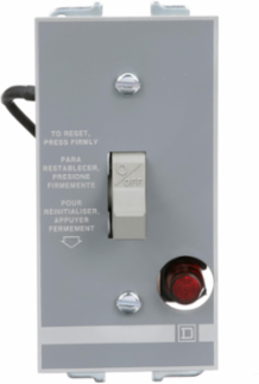

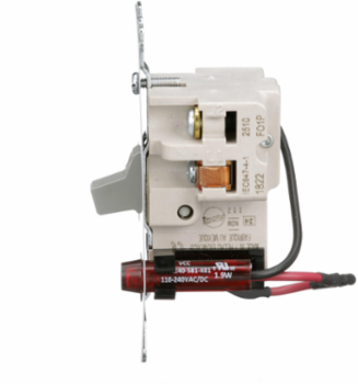

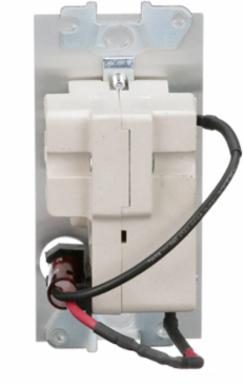

Square D 2510FO1P Manual Starter 16A 1 Pole 1 HP 277V AC Toggle Operated

MPN: 2510FO1P
UPC: 785901554141
PPN: SCH-2510FO1P
UNSPSC: 39121521

$208.11

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

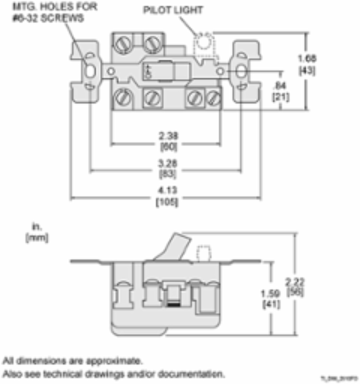

2510F fractional horsepower non-reversing manual starters provides manual On-Off control with overload protection for small motors. Designed for fractional single phase motors up to 1 HP. The toggle operator provides an easy manual On-Off control of small motors. These manual starters are used in a variety of industrial and commercial installations. Typical applications include fans, conveyors, pumps, and small machine tools. Melting alloy thermal units are used with this manual starter to sense over current conditions. Overload thermal unit is ordered separately to match motor data. This 1 pole nonreversing manual starter has a 16A current rating. Starter has a 1 HP rating at 115, 230, and 277 VAC. This manual starter is not supplied with an enclosure. This manual starter is 4.13 inches tall, 1.69 inches wide and 2.22 inches deep. This device has a red pilot light indicator. Manual starter is UL listed and CSA certified. Can be easily installed. UL, CSA and CE approvals. Square D 2510 Type F fractional motor manual starters provide overload protection and manual On-Off control for small single phase AC motors.

Features

This one pole device has a red pilot light indicator
Open style starter fits industry standard single-gang switch boxes for direct mounting in a wall or machine
Typical applications include fans, conveyors, pumps and small machine tools
Units are UL Recognized and CSA Certified for global applications

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico
Depth	2.22 in

Weight	163.3 g

Complementary Attributes

Maximum Horse Power Rating	1 hp 115 V AC, 1 hp 230 V AC, 1 hp 277 V AC
Ue Rated Operational Voltage	277 V AC

Line Rated Current	16 A

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB, SC
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Certificate Agency	UL recognized E42243 CCN NLRV2, CSA LR25490 class 3211 05
Carbon Footprint Of The End Of Life Phase C1 To C4	0.3 kg CO2 eq., 0.25493368485779266
Carbon Footprint Of The Manufacturing Phase A1 To A3	1 kg CO2 eq., 0.9569943241880242
Local Data Status	Publishable
Return Indicator	Y
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Full Compliance Status	Compliant By Exemption
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Awg Gauge	14 AWG...12 AWG copper
Control Type	toggle switch
Energy Efficiency Optimized	False
Motor Starter Type	non reversing
Phase	1 phase
Product Or Component Type	Single Unit Manual Starter
Reset	manual
Software Version	v6.2.5-6
Thermal Overload Type	melting alloy
Database Version	2024-01
Height Nominal	4.13 in
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market Segmentation	Commercial, Industrial
Carbon Footprint Of The Distribution Phase A4	0.04719167388397628, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.01953789976993882, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	4 kg CO2 eq., 4.430371808898552
Local Publishable Date	2025-11-13
Weee Scope	In
Scope Perimeter	Outside of Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
China Rohs In Scope	No
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Cable Entry	without
Electrical Connection	screw clamp terminals
Local Signalling	red indicator
Number Of Poles	1P
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	F
Returnability	Yes
Sustainable Packaging	No
Total Lifecycle Carbon Footprint	6 kg CO2 eq.
Data Source	extrapolated product
Width Nominal	1.69 in
Customs Code	8536504000
Functional Unit Description	When a product covered by this PSR includes additional functions, the functional unit defined in the PSR shall be used and shall be completed in order to take into account these additional functionsTo control, regulate, and protect the installation from overload and short circuits in a circuit with the rated voltage Ue and rated current In during the reference service life of the product of 20 years.
Functional Unit Unit	unit
Recyclability Potential In %	74

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Recycled Metal Content At Cr Level	0 %
Carbon Footprint	5.709029391598284
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2025-09-01
Psr Version	PSR-0005-ed3.1-EN-2023 12 08

Take Back	No
Mercury Free	Yes
Environmental Disclosure	ENVPEP2507018EN
Nema Degree Of Protection	not rated (open device)
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP2507018EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
