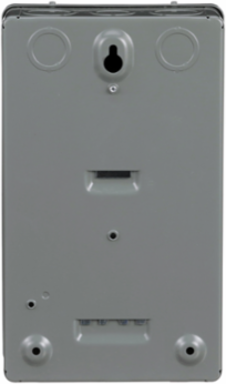

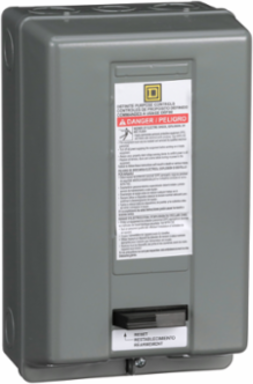

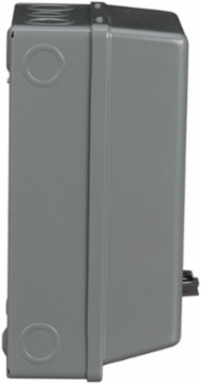

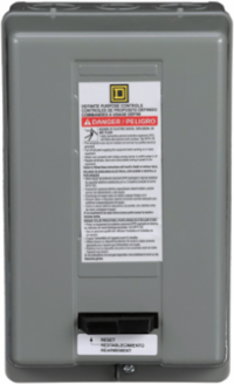

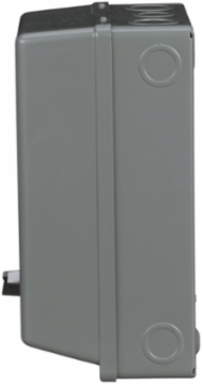

Square D 8911DPSG42V02 Definite Purpose Starter 40A 2 Pole 1 Phase 120V AC Coil
- MPN: 8911DPSG42V02
- UPC: 785901001515
- PPN: SCH-8911DPSG42V02
CAD
$451.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
8911 definite purpose starters are inexpensive starters for applications with relatively low duty cycles. Typical applications include air compressors, agricultural equipment, pumps, and HVAC equipment. This two pole definite purpose starter has a full load rating of 40 amperes. This starter has ratings of 3 HP at 115 VAC and 7.5 HP at 230 VAC single phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 110/120 VAC 50/60 Hz coil. The starter has straight through wiring. The melting alloy type overload relay uses Type B thermal units to sense over current conditions. A painted sheet steel NEMA 1 general purpose enclosure is used to protect this definite purpose starter. Enclosure is 10.00 inches tall, 6.00 inches wide and 5.56 inches deep. Auxiliary contacts are available for these starters. 8911DPS definite purpose starters are UL component recognized.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, Mexico, United States
Complementary Attributes
- Line Rated Current
- 40 A
- Maximum Horse Power Rating
- 3-3 hp 115 V AC, 1 phase7.5-7.5 hp 230 V AC, 1 phase
Locked Rotor Rated Current240 A 230 V AC200 A 460 V AC160 A 575 V AC
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2014
- China Rohs In Scope
- No
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Energy Efficiency Optimized
- False
- Number Of Thermal Units Required
- 1
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- DPS
- Sustainable Packaging
- Yes
- [Uc] Control Circuit Voltage
- 110 V AC 50 Hz120 V AC 60 Hz
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536504000
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Local Publishable Date2026-06-27
Stocking FlagN
Weee ScopeIn
Scope PerimeterOutside of Europe
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Enclosure Materialpainted sheet steel
Number Of Poles2P
Phase1 phase
Product Or Component TypeDefinite Purpose Starter
ReturnabilityYes
Thermal Overload Typemelting alloy
[Ue] Rated Operational Voltage600 V AC
Package Weight(Lbs)2.567 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
Take BackNo
Mercury FreeYes
Nema Degree Of ProtectionNEMA 1
Packaging Without Single Use PlasticYes
General Attributes
- Phase
- 1 phase
- Range Of Product
- DPS
Product Or Component TypeDefinite Purpose Starter
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
