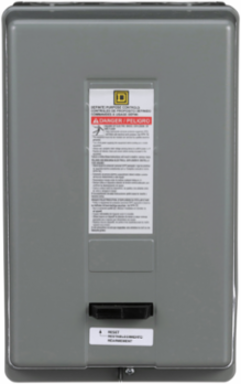

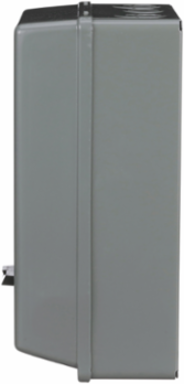

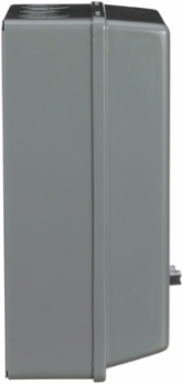

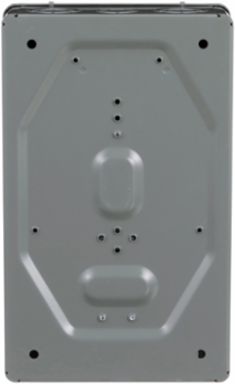

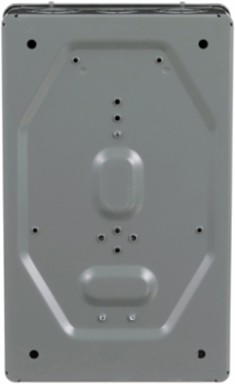

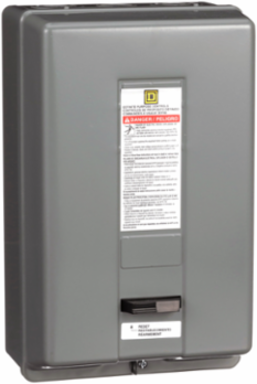

Square D 8911DPSG52V09 Definite Purpose Starter 50A 2 Pole 1 Phase 208V-240V AC

MPN: 8911DPSG52V09
UPC: 785901024835
PPN: SCH-8911DPSG52V09
UNSPSC: 39121521

$567.60

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

8911 definite purpose starters are inexpensive starters for applications with relatively low duty cycles. Typical applications include air compressors, agricultural equipment, pumps, and HVAC equipment. This two pole definite purpose starter has a full load rating of 50 amperes. This starter has ratings of 3 HP at 115 VAC and 10 HP at 230 VAC single phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 220/208 to 240 VAC 50/60 Hz coil. The starter has straight through wiring. The melting alloy type overload relay uses Type B thermal units to sense over current conditions. A painted sheet steel NEMA 1 general purpose enclosure is used to protect this definite purpose starter. Enclosure is 12.68 inches tall, 7.80 inches wide and 6.30 inches deep. Auxiliary contacts are available for these starters. 8911DPS definite purpose starters are UL component recognized.

Features

Definite purpose starters are inexpensive starters for applications with relatively low duty cycles
These starter ratings from 20-50A
Small and compact design
Ideal for use with compressors, agricultural equipment, pumps and HVAC equipment

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	United States

Complementary Attributes

Line Rated Current	50 A
Maximum Horse Power Rating	3-3 hp 115 V AC, 1 phase10-10 hp 230 V AC, 1 phase
Ue Rated Operational Voltage	600 V AC

Locked Rotor Rated Current	300 A 230 V AC250 A 460 V AC200 A 575 V AC
Uc Control Circuit Voltage	220 V AC 50 Hz208...240 V AC 60 Hz

Important Information Attributes

Persona Type Ids	LC, OM, OM8, PB, SC
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Local Data Status	Publishable
Return Indicator	Y
Weee Product Category	5
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2014
China Rohs In Scope	No
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Energy Efficiency Optimized	False
Number Of Thermal Units Required	1
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	DPS
Sustainable Packaging	Yes
Nbr. Of Units In Pkg.	1
Warranty In Months	18

Persona Type Names	Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market Segmentation	Commercial, Industrial
Local Publishable Date	2026-06-27
Weee Scope	In
Scope Perimeter	Outside of Europe
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Enclosure Material	painted sheet steel
Number Of Poles	2P
Phase	1 phase
Product Or Component Type	Definite Purpose Starter
Returnability	Yes
Thermal Overload Type	melting alloy
Customs Code	8536504000

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Recycled Metal Content At Cr Level	0 %
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
