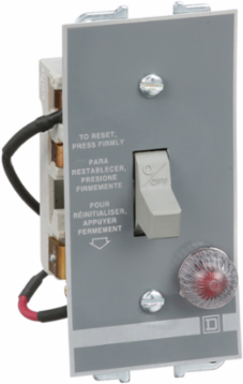

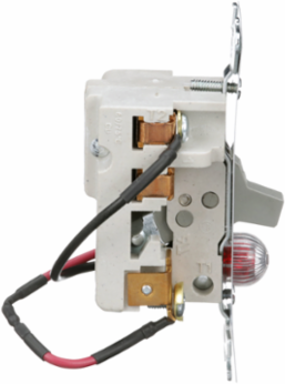

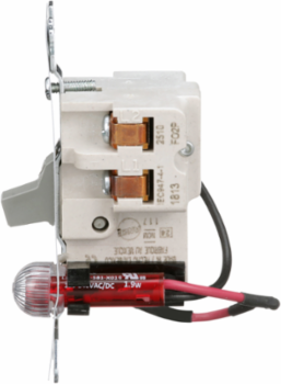

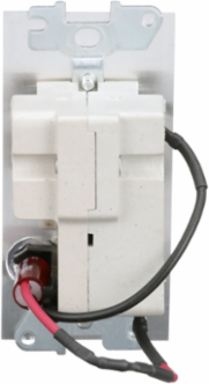

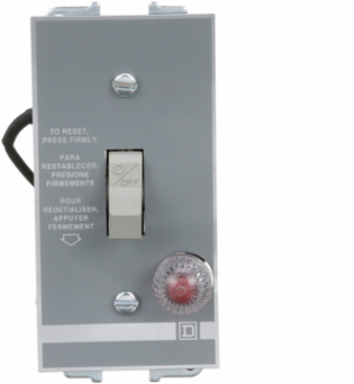

Square D 2510FO2P Manual Starter 16A 2 Poles 1HP at 277V AC Red Indicator
- MPN: 2510FO2P
- UPC: 785901554165
- PPN: SCH-2510FO2P
CAD
$233.48
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

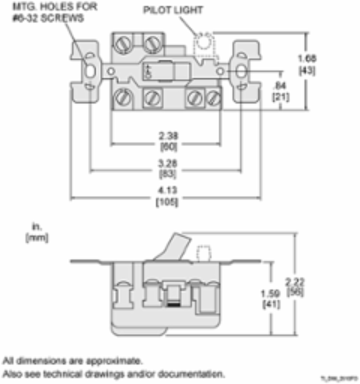

2510F fractional horsepower non-reversing manual starters provides manual On-Off control with overload protection for small motors. Designed for fractional single phase motors up to 1 HP. The toggle operator provides an easy manual On-Off control of small motors. These manual starters are used in a variety of industrial and commercial installations. Typical applications include fans, conveyors, pumps, and small machine tools. Melting alloy thermal units are used with this manual starter to sense over current conditions. Overload thermal unit is ordered separately to match motor data. This 2 pole nonreversing manual starter has a 16A current rating. Starter has a 1 HP at 115 VAC, 2 HP at 230 VAC, 1 HP at 277 VAC and 0.75 HP at 115 and 230 VDC ratings. This NEMA 1 general purpose enclosure is a surface mounting enclosure. This manual starter is 4.13 inches tall, 1.69 inches wide and 2.22 inches deep. This device has a red pilot light indicator. Manual starter is UL listed and CSA certified. Can be easily installed. UL, CSA and CE approvals. Square D 2510 Type F fractional motor manual starters provide overload protection and manual On-Off control for small single phase AC motors.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Depth2.22 in
Complementary Attributes
- Maximum Horse Power Rating
- 1 hp 115 V AC, 1 hp 277 V AC, 0.75 hp 115 V DC, 0.75 hp 230 V DC, 2 hp 230 V AC
Line Rated Current16 A
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- UL recognized E42243 CCN NLRV2, CSA LR25490 class 3211 05
- Carbon Footprint Of The Distribution Phase [A4]
- 0.049821460977327064, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.020626662096371415, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 9 kg CO2 eq., 8.860743617797104
- Local Publishable Date
- 2025-11-13
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- China Rohs In Scope
- No
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Cable Entry
- without
- Electrical Connection
- screw clamp terminals
- Local Signalling
- red indicator
- Number Of Poles
- 2P
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- F
- Returnability
- Yes
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 10 kg CO2 eq.
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- When a product covered by this PSR includes additional functions, the functional unit defined in the PSR shall be used and shall be completed in order to take into account these additional functionsTo control, regulate, and protect the installation from overload and short circuits in a circuit with the rated voltage Ue and rated current In during the reference service life of the product of 20 years.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; United States, US
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; United States, US
- Recyclability Potential, In %
- 74
- Width Nominal
- 1.69 in
- Package Weight(Lbs)
- 172.4 g
- Warranty (In Months)
- 18
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
[Ue] Rated Operational Voltage277 V AC, 230 V DC
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.3 kg CO2 eq., 0.26914003226872907
Carbon Footprint Of The Manufacturing Phase [A1 To A3]1 kg CO2 eq., 1.01032346289048
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Awg GaugeAWG 14...AWG 12 copper
Control Typetoggle switch
Energy Efficiency OptimizedFalse
Motor Starter Typenon reversing
Phase1 phase
Product Or Component TypeSingle Unit Manual Starter
Resetmanual
Software Versionv6.2.5-6
Thermal Overload Typemelting alloy
Pep CodeENVPEP2507018EN
Pep Verification Date2025-09-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y20
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal4.13 in
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 10.21065523603001
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-09-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Take BackNo
Mercury FreeYes
Environmental DisclosureENVPEP2507018EN
Nema Degree Of Protectionnot rated (open device)
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2507018EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Phase
- 1 phase
- Range Of Product
- F
Product Or Component TypeSingle Unit Manual Starter
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
